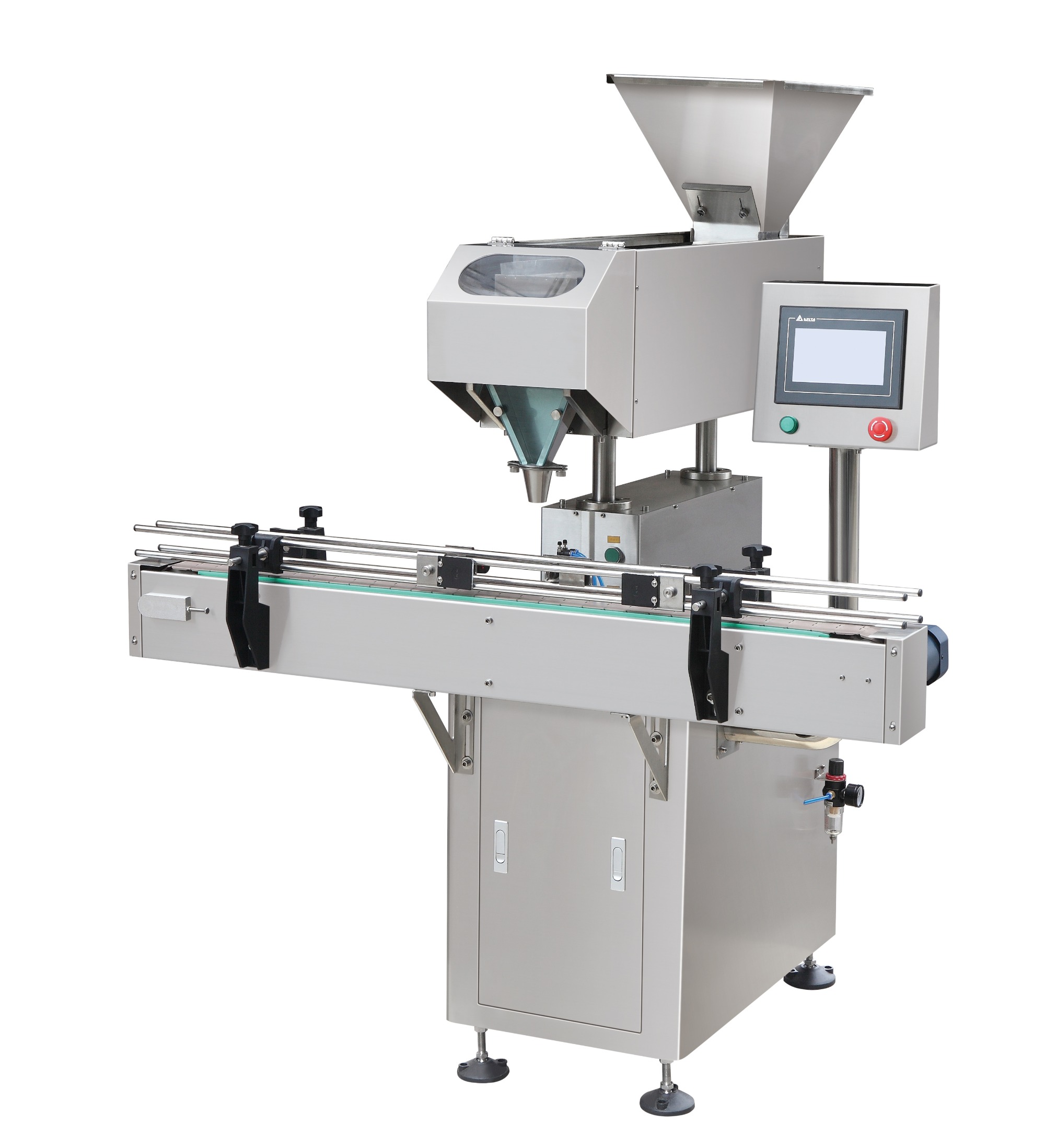

KV-8 PILL ELECTRONIC COUNTING AND FILLING MACHINE

Item No.: LPMIE318
THE MACHINE COULD COUNT TABLET,CAPSULE,PILL, SOFTGEL WITHOUT REPLACEMENTS OF CHANGE PARTS, WHICH COULD ALSO COUNT OTHER REGULAR SHAPES OF OBJECTS TOO.
INQUIRY
Description
High efficiency electronic pill counting machine

Good compatibility:

It can count and bottle solid preparations or solid particles such as tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), and pills.

Prevent drug blocking:

The special structure of the leaking nozzle can prevent the medicine from being blocked, and the medicine bottle with a small mouth can be bottled quickly. (Optional)

No damage to the material:

The unloading and discharging are uniform and stable, and the unique switching structure of the bottle does not damage the material and ensures the accurate bottling.

Detection function:

It has multiple detection alarm control functions, such as no bottles but no counts, automatic removal of abnormal medicine bottles or broken particles of a certain size, and fault self-checking.

High dust resistance:

Using our company's anti-high dust photoelectric sensor technology, it can work stably even under high dust conditions.


Speed 10-30 bottles/min
Pill 005# capsule, Softgel,ф5.512, ф312 pill
Filling range 29999 pills  adjustable
Power supply 220V/50HZ  0.6KW
Bottle nozzle 10-500ml round or square bottles
Precision More than 99.5%
Dimension 1360X1250X1600MM
Package 1520X1310X1620MM
weight 300KG
Notes Speed depends on pills and bottle specification etc.
