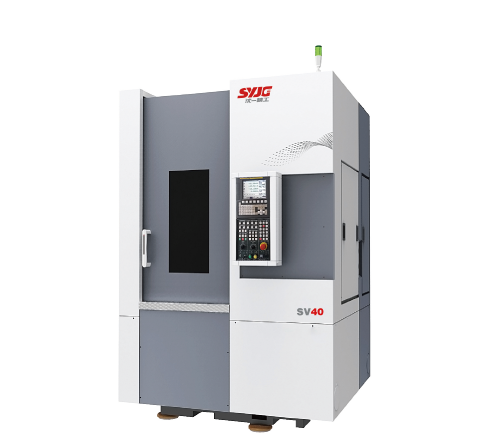

SV40 High Precision Industrial Vertical CNC Lathe Machine

Item No.: LPMIE127
SV vertical CNC lathe is based on absorbing the advanced technology of similar machine tools at home and abroad. It is an excellent product designed and produced in accordance with the market demand with years of experience in the production of vertical l
INQUIRY
Description

Product Description

SV vertical CNC lathe is based on absorbing the advanced technology of similar machine tools at home and abroad. It is an excellent product designed and produced in accordance with the market demand with years of experience in the production of vertical lathe. This series of machine tools is economical, efficient, energy saving and environmental protection. It is the first choice for processing complex disk parts in automobile, military industry and other machinery industries. This series of machine tools can process all kinds of short shaft and disk parts, and can turn all kinds of thread, arc and the inside and outside surface, end face and groove of the rotary body.

Technical Parameters
Project

Unit

SV40

Max. Swing diameter

mm

650

Max. cutting length

mm

500

Max. cutting diameter

mm

500

Type and code of spindle end

  A2-8

 Range of spindle speed

R/min

50~2500

Max. output torque of spindle

Nm

549

Main motor output power

kw

15/18.5

Diameter of chuck

inch

12”

X/Z axis fast moving speed

M/min

18

X axis travel

mm

300

Z axis travel

mm

520

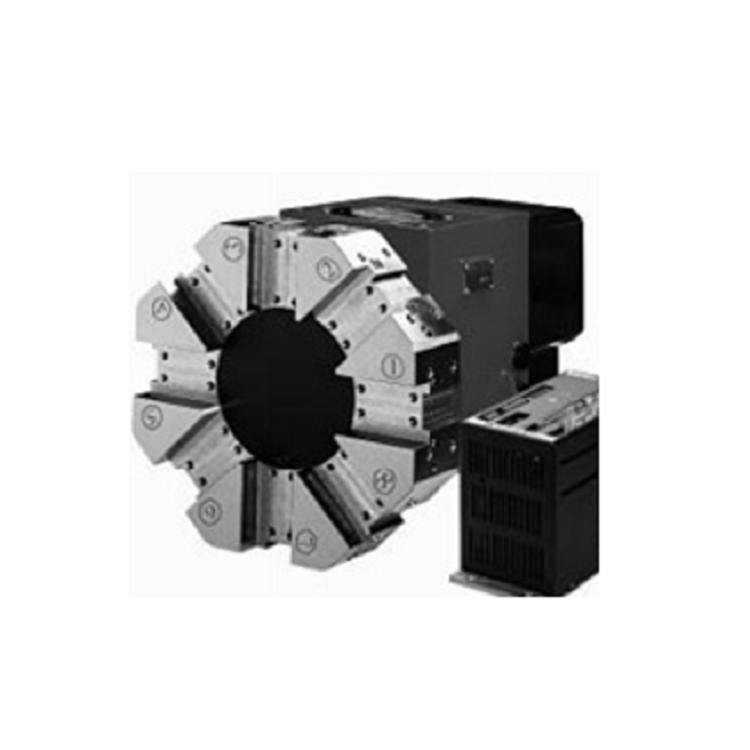

Standard tool rest type



Horizontal type 8 position

External circular knife

mm

25*25

Diameter of boring tool rod

mm

∅50

Tool overall dimensions

mm

2260*1780*2880

The host weight

kg

6000

Dimensions of back chip cleaner

mm

3200*600*900

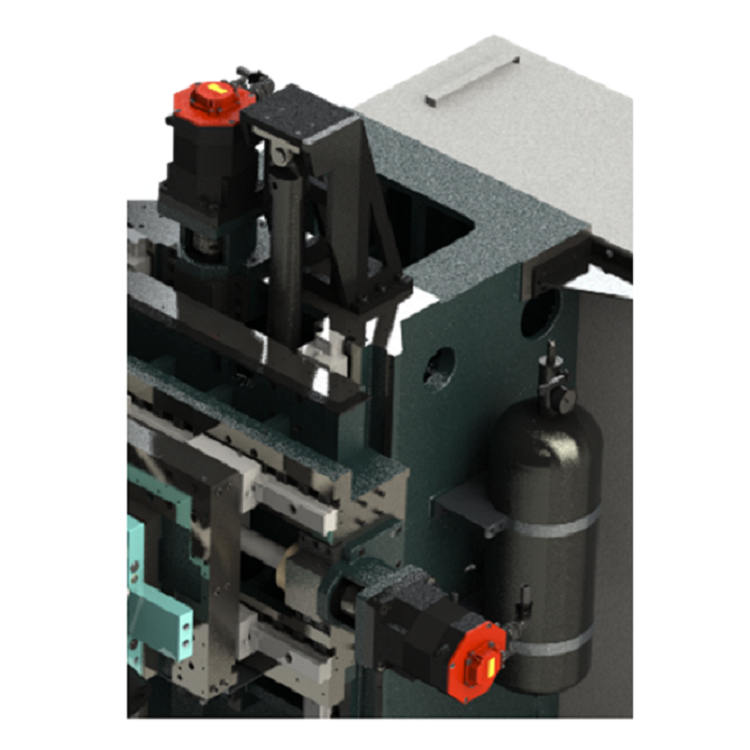

Details image
