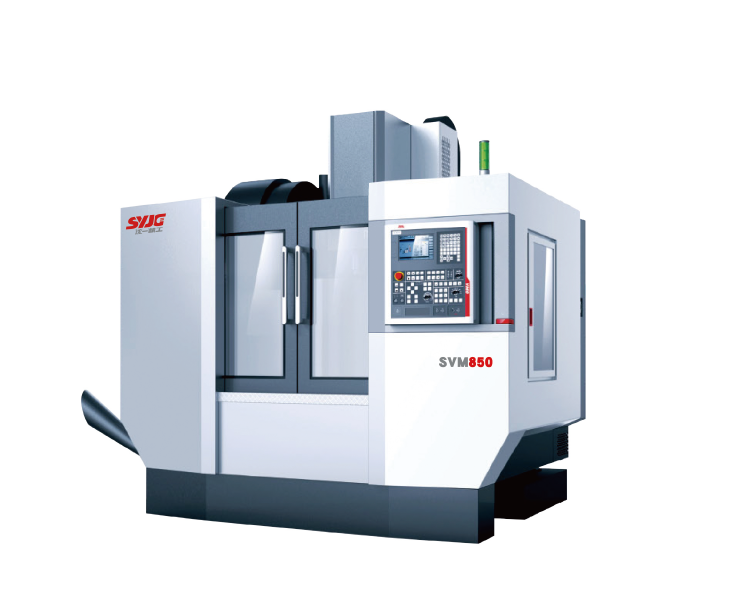

SVM850 China Multifunction Vertical Machining Center CNC Milling Machine

Item No.: LPMIE122
Svm500, svm850 and svm1000 vertical machining centers are mainly used to process high precision, multi process and complex shape parts such as plates, shells, moulds, etc. it can continuously complete milling, drilling, expanding, reaming, boring, tapping
INQUIRY
Description

Product Description

Svm500, svm850 and svm1000 vertical machining centers are mainly used to process high precision, multi process and complex shape parts such as plates, shells, moulds, etc. it can continuously complete milling, drilling, expanding, reaming, boring, tapping and the accurate machining of two-dimensional three-dimensional curved surface and inclined plane in one clamping process. The processing is programmed, which shortens the production cycle and enables users to obtain good economic benefits Economic benefits.

Technical Parameters
Project

Unit

SVM500

SVM850

 SVM1000

Table size

mm

650*400

1000*500

1200*500

Max. allowable load

kg

250

850

1000

X axis travel

mm

500

850

1000

Y axis travel

mm

400

500

610

Z axis travel

mm

300

540

650

Distance from spindle end face to working surface

mm

150-450

120-600

150-800

Range of spindle speed/Max. output torque of spindle

R/min/Nm

20000/17

50~8000/35.8

50~8000/52.5

Main motor output power

kw

3.7

7.5/11

11/15

The spindle taper hole



BT30

BT40

BT40

The handle type



MAS403 BT30

MAS403 BT40

MAS403 BT40

Rivet type



MAS403 BT30-l

MAS403 40BT-l

MAS403 40BT-l

X/Y/Z axis fast moving speed

m/min

48

32/32/30

32/32/30

knife library type



Turret servo knife library

manipulator

manipulator

knife library capacity tool magazine capacity



21

24

24

Tool overall dimensions

mm

2150*1750*2400

2786*2200*2622

4355*2275*2920

The host weight

kg

2200

5800

7000

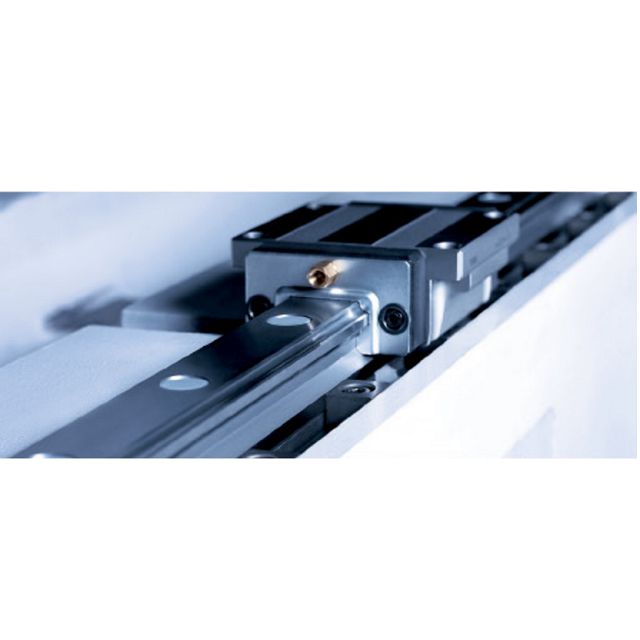

Details image
​​​​​​
