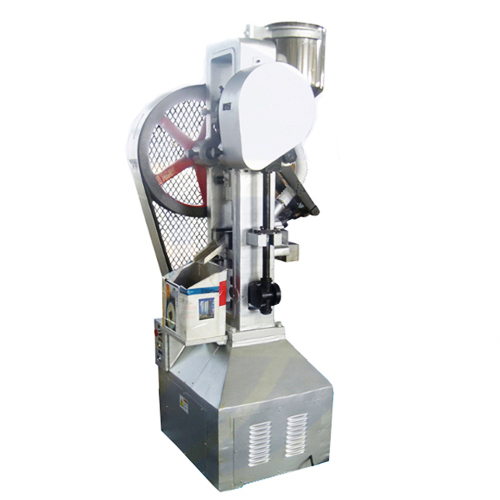

THP10 Single Punch Tablet Press Machine
Item No.: LPMIE158
THP Series Tablet Press Machine is a medium continuous automatic tablet press which is one of the essential equipment for pressing granular raw materials into tablets or medicines taken with water in pharmaceutical, chemical, food, electronic industries.
Product parameters | |
Model: | THP10 |
Capacity: | 2760pcs/hour |
Power: | 3.7kw |
Weight: | 770kg |
Dimension: | 666*860*1825mm |
Description
Discription
THP Series Tablet Press Machine is a medium continuous automatic tablet press which is one of the essential equipment for pressing granular raw materials into tablets or medicines taken with water in pharmaceutical, chemical, food, electronic industries. It can be used to press medicinal tablets, coffee pills, powder metallurgical parts electronics components, various tablets of pesticide and fertilizer etc. In small-batch production, laboratory and hospital. The machine can press special-shaped circular tablets of different kinds, and can also process the tablets of pesticide both sides are impressed trademarks, letters and simple patterns.
Technical Parameters
Technical Parameters
Model | THP I | THP II |
Max. Pressure | 40kn | 100kn |
Max. Dia Of Tablet | 30mm | 50mm |
Max. Depth Of Fill | 25mm | 45mm |
Max. Dia Of Circular Tablets | 22mm | 50mm |
Depth Of Fill Circular Tablets | 5-10mm | 6-14mm |
Production Capacity | 2070pcs/hour | 2760pcs/hour |
Motor Power | 1.1kw | 3.7kw |
Overall Dimension | 685×565×1610 mm | 666×860×1824mm |
