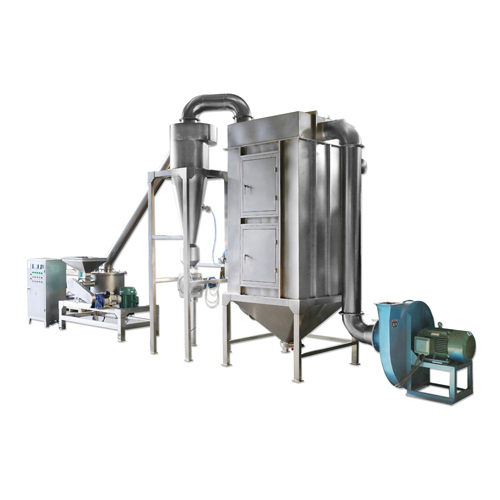

Ultrafine Herb Pulverizer

Item No.: LPMIE196
The ultrafine herb pulverizer is consists of three parts of the main machine, auxiliary machine and electrical control box, with the performance of winnowing, no screen, uniform size and continuous production.
Product parameters
Model: WFJ Series
Capacity: 10-1600
Power: 13.75-100.4 kw
Weight: 850-3200kg
Dimension: 4200x1250x2700
INQUIRY
Description

Application

This machine is consists of three parts of the main machine, auxiliary machine and electrical control box, with the performance of winnowing, no screen, uniform size and continuous production.
The main machine temperature do not rise when working, can grind various heat sensitive material.
The comprehensive performance has reached international advanced level, widely used in pharmaceutical, chemical and food industry, can grind the materials such as: herb, plant root and stem, corn, rice, pepper, lettuce, soy, garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, sugar, saccharin, dried shrimps, pumpkin powder and seasoning, etc.



Working Principle

Material from the hopper through screw conveyor into the crushing chamber, shattered by high-speed rotation cutting blade, transported via the negative pressure air method transport the material into cyclone, bag type dust collector, the discharge material meet product requirement.



Parameters



Model

WFJ-15

WFJ-20

WFJ-30

WFJ-60

WFJ-80

Production  Capacity(kg/h)

10-100

50-200

50-300

100-1200

100-1600

Inlet material size (mm)

<10

<10

<10

<12

<12

Outlet powder size (mesh)

80-320

80-320

80-320

80-320

80-320

Rotary speed (rpm)

5800

4200

3800

3200

2800

Total power (kw)

13.75

22.15

46

84.15

100.4

Machine dimension (mm)

4200x1250x2700

4700x1250x2900

6640x1300x3960

7500x2300x4530

8200x2500x4600

Weight (kg)

850

850

960

3200

3200
