Hot sealing label mechanism, to achieve hot sealing label.

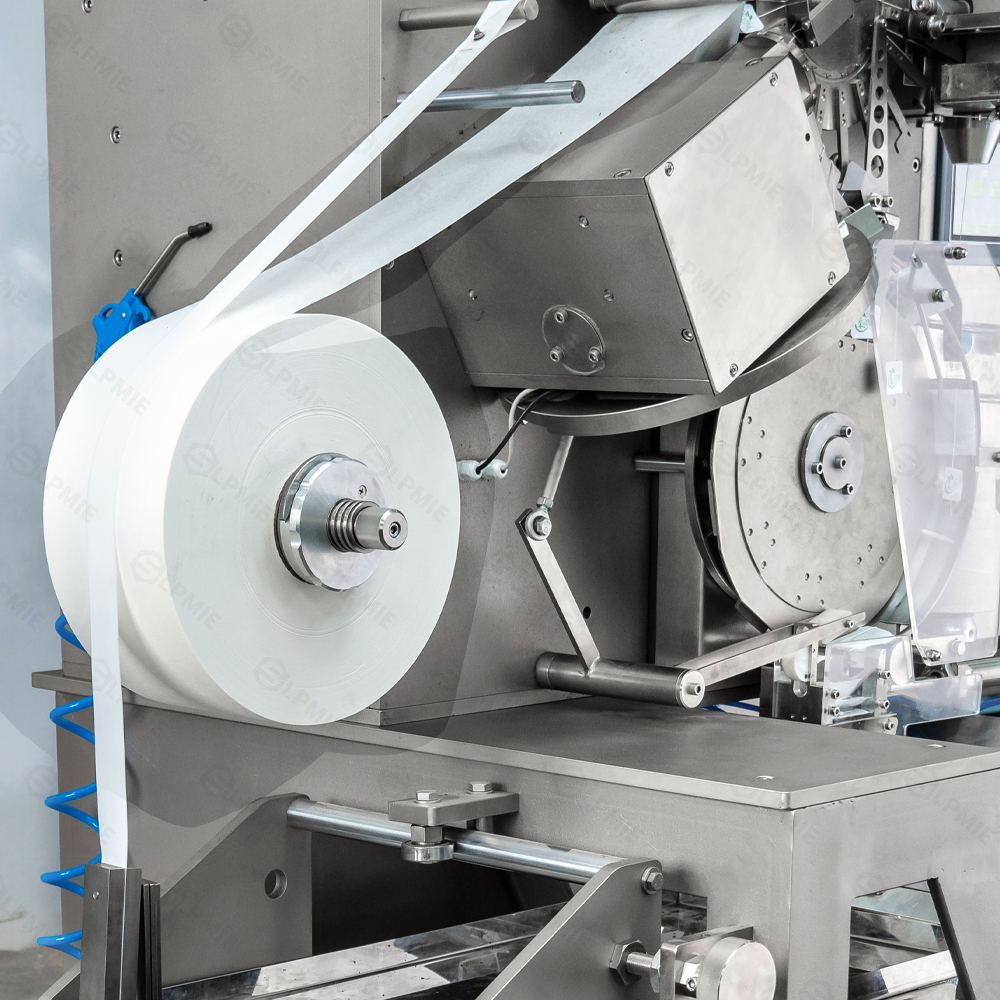

Servo control outer bag traction, accurate positioning.
High quality sealing structure design, good air tightness, can realize the point and line connection between each bag, N bag cut off.
Photoelectric automatic tracking color points, trademark positioning accurate.
Sensor monitoring bag blocking, lack of materials alarm stop.
Stainless steel integrated molding machine, easy to disassemble.
Available plastic/plastic, plastic/aluminum/plastic and other heat-sealed composite packaging materials.
Video presentation
Product Details Product Parameters
Productive capacity
110±5 bags/min
Outer pocket size
100(W)×130(L) (Inner bag quantity 3-5 bags)
Maximum packing capacity of inner bag
6 cm³
Inner pocket size
62.5×50 mm
Label size
28×24 mm
Line length
210 mm
Power source
AC 380V/220V
Gross power
2 kw
Working pressure
0.4-0.6 MPa
Air consumption
65 L/min
Net weight
910 kg
Gross weight
1200 kg
Overall dimensions
1.4×0.905×2.475 m
Dimensions of the packing box
1.7×1.1×2.2 m
Product Application
Tea Industry: Specifically designed for packaging loose tea varieties such as CTC black tea, green tea granules, and herbal blends. The machine ensures precise portioning and packaging, maintaining the tea’s freshness and aroma.
Pharmaceutical Industry: Suitable for packaging non-sticky, granular medicinal products like herbal supplements, powdered medications, or health teas in precise quantities, ensuring hygiene and consistency.
Food Industry: Used for packing granular food items such as spices, powdered coffee, instant soup granules, and other dry food products in compact and protective packaging.
This adaptability makes the tea bag packing machine an essential tool for businesses that deal with granular, non-sticky products requiring efficient, clean, and precise packaging.
