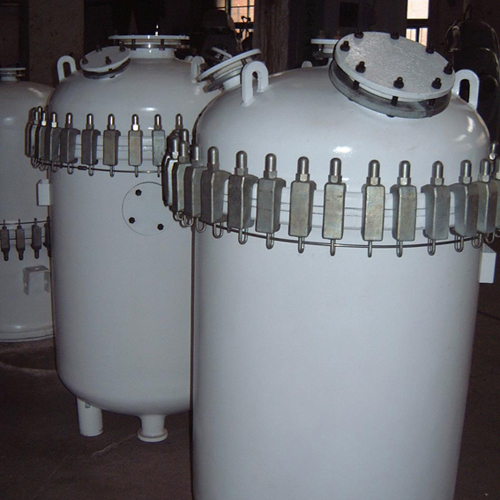

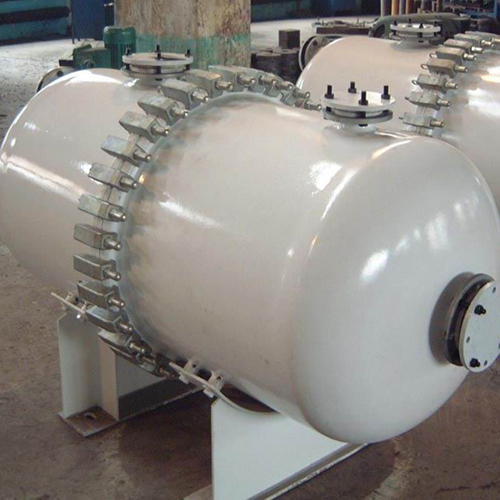

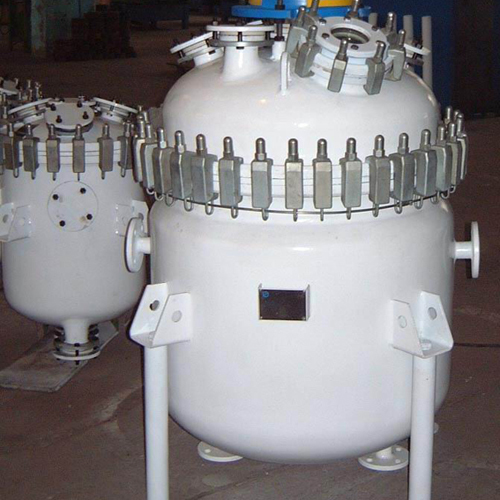

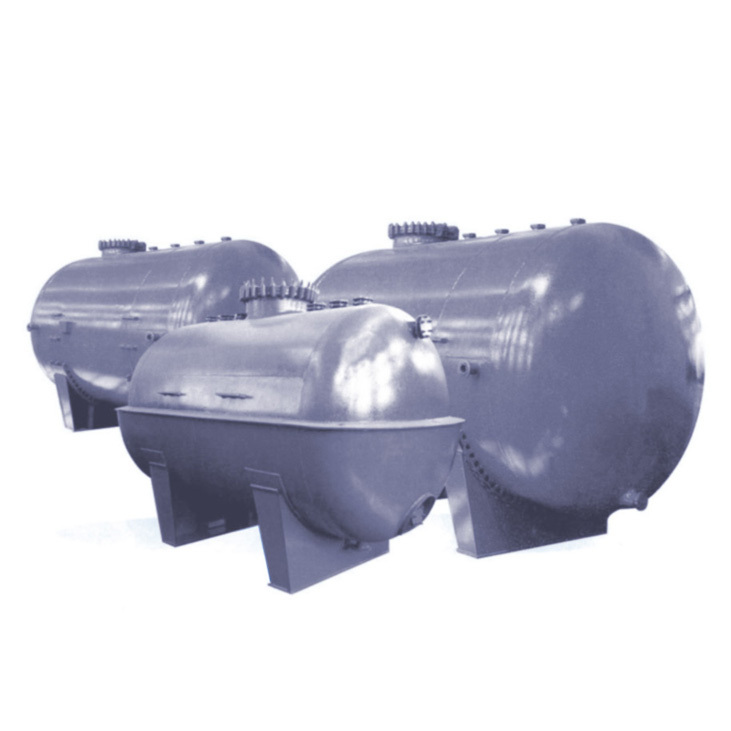

Name: BCK Series Glass Lined Storage Tank
Brand: Liaoyang Pharma Machinery Co., Ltd.
SKU: LPMIE199
Availability: InStock
Rating: 5 (1 reviews)

We use cookies to improve your online experience. By continuing browsing this website, we assume you agree our use of cookies.

English

日本語

Deutsch

Français

Español

Русский

Português

Italiano

한국어

ไทย

Tiếng Việt

Bahasa Melayu

Polskie

Shqiptare

عربي

Gaeilge

Filipino

қазақ

Nederlands

नेपाली

Home

Products

Pharmaceutical Equipment

Raw Material Processing Equipment

Pulverizer Milling & Grinding Machine Mixing Machine

Drying Equipment

Freeze Dryer Spray Dryer Fluidized Bed Drying Oven

Granulation Equipment

Dry Granulator Wet Granulator

Tablet Manufacturing Equipment

Tablet Press Sieving Machine

Capsule Manufacturing Equipment

Capsule Filling Machine Capsule Polishing Machine Capsule Sorting Machine Capsule Seperating Machine Softgel Capsule Sealing Machine

Coating Equipment

Flim Coating Machine Fluidized Bed Coating Machine

Filling Equipment

Vial Filling Tube Filling Liquid Filling Powder Filling

Extraction Equipment

Supercritical CO2 Extraction Equipment Plant Essential Oil Extraction Equipment

Separation Equipment

Tubular Centrifuge Disc Centrifuge Decanter Centrifuge Biodiesel Cenrifuge Plate Centrifuge Desktop Closed Type Centrifuge Molecular Distillation Equipment

Sterilization Equipment

Pulsating Vacuum Autoclave Clean Roon

Analyzers & Testing Equipment Production Line

Chemical Equipment

Filling Equipment

Tube Filling Liquid Filling Powder Filling

Granulation Equipment Drying Equipment

Freeze Dryer Spray Dryer Fluidized Bed Drying Oven

Milling & Grinding Equipment

Hammer Mill Ultrafine Pulverizer Superfine Mill Turbo Mill Roll Compactor Three Roll Mill Coarse Crusher Colloid Mill

Mixing & Blending Equipment

V Mixer 3D Mixer Trough Mixer Hopper Mixer Double Cone Mixer Homogenizer Emulsifier Machine

Separation Equipment

Disc Centrifuge Tubular Centrifuge Decanter Centrifuge Biodiesel Cenrifuge Plate Centrifuge Desktop Closed Type Centrifuge Molecular Distillation Equipment

Coating Equipment

Film Coating Machine Fluidized Bed Coating Machine

Extraction Equipment

Supercritical CO2 Extraction Equipment Plant Essential Oil Extraction Equipment

Locking Screw Equipment Reaction Equipment Soap Production Line

Food Processing Equipment

Filling Equipment Drying Equipment Milling & Grinding Equipment Mixing Equipment Tablet Press Coating Equipment Candy Making Machine Separation Equipment Cleaning Equipment Cutting Equipment Baking Equipment Steaming & Boiling Equipment

Packaging Equipment

Tea Bag Packing Machine Net & Mesh Bag Packing Machine Pouch Packing Machine Blister Packaging Machine Counting Machine Capping Machine Sealing Machine Labeling Machine Film Bunding Machine Film Wrapping Machine Foil Wrapping Machine Shrink Wrapping Machine Roll Wrapping Machine Pillow Packing Machine Embossing Pressing Wrapping Machine Cartoning Machine

Metal Processing Equipment

Milling Machine Grinding Machine Lathe Machine Processing Line

Others

Vending Machine

Forging Machine

News

Blog

About Us

Company Honor

English

Home > Chemical Equipment > Reaction Equipment

Description Enamel Characteristic Chemical Property Corrosive Allowance

Description

Introduction

Glass lined equipment is a kind of vessel which cylinder was made of high quality carbon steel lined with special silicate glass by fritting at a high temperature, with mechanical strength as steel vessel, anti-corrosive as glass equipment, ideal multi-functional corrosive resistance equipment for hydrolysis, neutralization, crystallization, distillation, evaporation and stocking in pharmaceutical, chemical industries.

Application

Applied with high corrossive resistance characteristics technology glass lined reactor manufacture; this achieved the reactor with highly corrosion resistant, chemical inert, as ideal equipment for different processing environment, as below:
1.pharmaceutical and veterinary drugs
2.chemical and fine chemicals
3.dyeing industry
4.organic synthesis
5.food-stuff industry

Enamel Characteristic

Glass-Lined Enamel Characteristics

We provided high content cobaltous oxide and silica anti-corrosive enamel for glass lined equipment, pipeline and fittings, which coating on the surface of metallic matrix and through high temperature 950℃~980℃ furnace for enamel firing, make the glass lined equipment have the performance of metal strength and glass material stabilities.

Physical Property

Test Item	Results	Standard
Mechanical Impact resistance of glass-lined layer	>220 x10-3J	GB25025-2010
Enamel Thickness (mm)	0.8~2.0mm	GB25025-2010
Preliminary Spark Test （V）	20kV	GB25025-2010
Final Spark Test（V）	7kV	GB25025-2010
Thermal/Cooling shock resistance of glass-lined layer (℃)
Cooling Impact：	110℃	GB25025-2010
Thermal Impact：	120℃
Design Temperature (℃)	0℃~180℃	GB25025-2010

Chemical Property

Glass Lined Reactor Chemical Property
Glass Lined Equipment Enamel Chemical Resistance Allowance List

No.	Medium Name	Concentration	Temp.	Corrosive Rate mm/y	No.	Medium	Concentration	Temp.	Corrosive Rate mm/y
1	HCL	<35	<105	<0.005	22	Al2 (SO4)3	20-50	<105	<0.005
2	HCL	>5	>105	0.02-0.05	23	NH4 Cl	<50	<105	<0.005
3	HNO3	5-75	<105	<0.005	24	HCHO	-100	<105	<0.005
4	HNO3	100	<60	<0.005	25	K2 SO4	10	<105	<0.005
5	H2SO4	<80	150	<0.005	26	NaCl	50	105	<0.005
6	H3PO4	40	100	0.02-0.05	27	C2 H2O4	10	<38	<0.005
7	H3PO4	40	>150	>0.05	28	NaF	<5	<100	<0.005
8	H3PO4	30-80	<100	<0.005	29	NaHSo	20-50	100	<0.02
9	NaOH	<25	Room Temp.	<0.005	30	C2 H4 (NH2)OH	-100	<105	<0.005
10	NaOH	20	60	>0.02	31	C2 H4 (NH2)OH	-100	<200	<0.005
11	NaOH	20	80	>0.05	32	Br	100	<80	0.005-0.02
12	NaOH	30	<38	<0.005	33	CCl 4	50-100	<105	<0.005
13	Na2CO3	30	60	<0.03	34	H2 CrO4	20-30	<105	<0.005
14	NaHCO3	>25	Room Temp.	<0.005	35	FeCl3	10-40	<105	0.02-0.05
15	NaHCO3	>25	100	<0.02	36	(HO3)C6H2COOH	100	<100	<0.005
16	CuSO4	10-50	<105	<0.005	37	COOH(CH2) 2CH)(NH2)	100	<100	<0.005
17	CuCl2	10-50	<105	<0.005	38	C6H6	100	<100	<0.005
18	Cu (NO3)2	10-50	<105	<0.005	39	C6H5OH	100	<100	<0.005
19	CH 3COOH	~100	<100	<0.005	40	NaNO3	10-50	<100	<0.005
20	AlCl3	10	>200	>0.05	41	Na2SO4	20	<100	<0.005
21	AlCl3	30	<105	<0.005	Attention: hydrofluoric acid, high-concentration phosphoric acid and high-concentration sodium hydroxide
22	KAl (SO₄)₂	10-50	<105	<0.005
