Product Overview

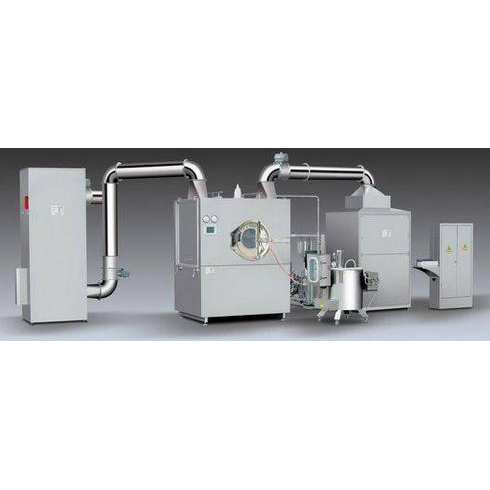

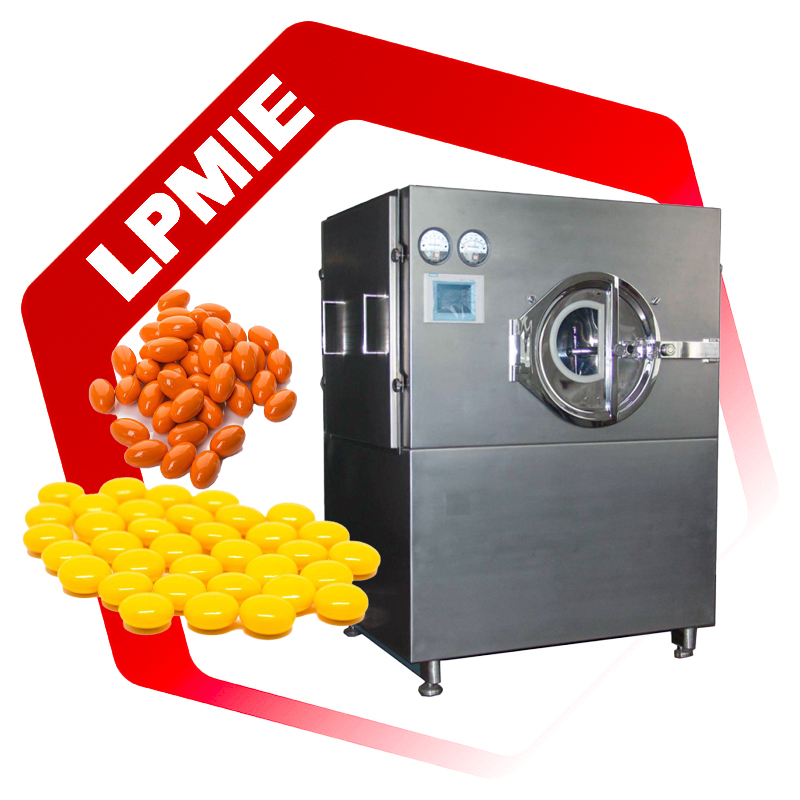

The BG-C Series Film Coating Machine is a high-efficiency, energy-saving, and GMP-compliant equipment designed for coating organic film, water-soluble film, slow-release, and enteric coatings on tablets, pills, and granules.
It integrates mechanical, electrical, and pneumatic control systems, providing precise process automation and reliable film coating results. Widely used in pharmaceutical, food, and health product industries, this coating system ensures uniform, glossy, and smooth coating layers.

Working Principle

The tablet cores to be coated move continuously and uniformly inside a closed rotating drum with a specially designed guide plate.
A programmable control system regulates:

• The spray of coating solution,

• The temperature and volume of hot air, and

• The negative pressure inside the drum.

As the hot air penetrates the moving tablet bed, the coating medium dries evenly and rapidly, forming a dense, smooth, and uniform film layer that enhances tablet protection, appearance, and stability.

Features & Benefits

• Full Mechatronic Control: Combines mechanical, electrical, and pneumatic systems under centralized computer control.

• Precise Parameter Display: Real-time monitoring of negative pressure, hot air fan speed, and temperature.

• Anti-Clogging Spray Gun: Automatic cleaning and anti-blocking function ensure continuous spraying.

• Process Data Memory: Supports data recording, parameter printing, and SOP writing for batch repeatability.

• Uniform Coating: Optimized airflow and spraying design ensure consistent film quality for every tablet.

• Energy-Saving & Safe: Compact structure, low noise, reduced material loss, and easy cleaning, fully meeting GMP standards.

Product Parameters

Product Application

• Pharmaceutical industry: Film coating for tablets, pills, granules, and herbal medicines.

• Nutraceuticals: Coating of vitamins, dietary supplements, and probiotics.

• Food industry: Surface coating of confectionery and functional food tablets.

• Chemical industry: Coating of catalyst beads or controlled-release materials.
