Product Overview

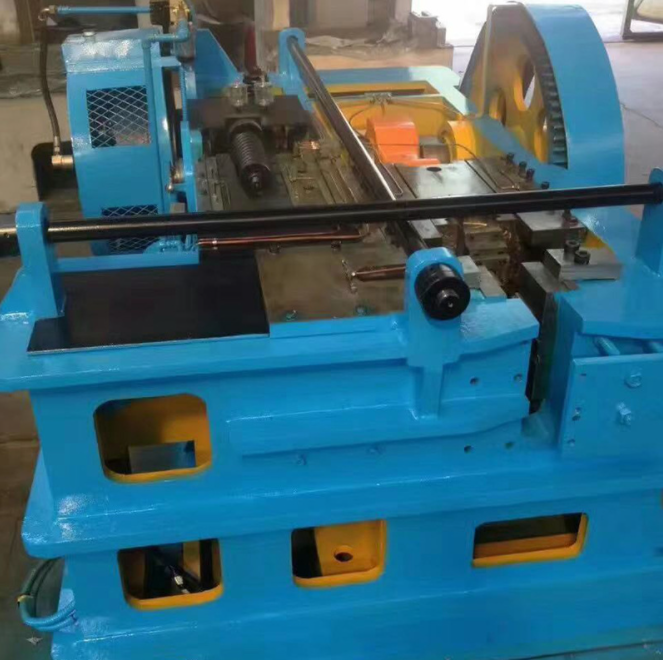

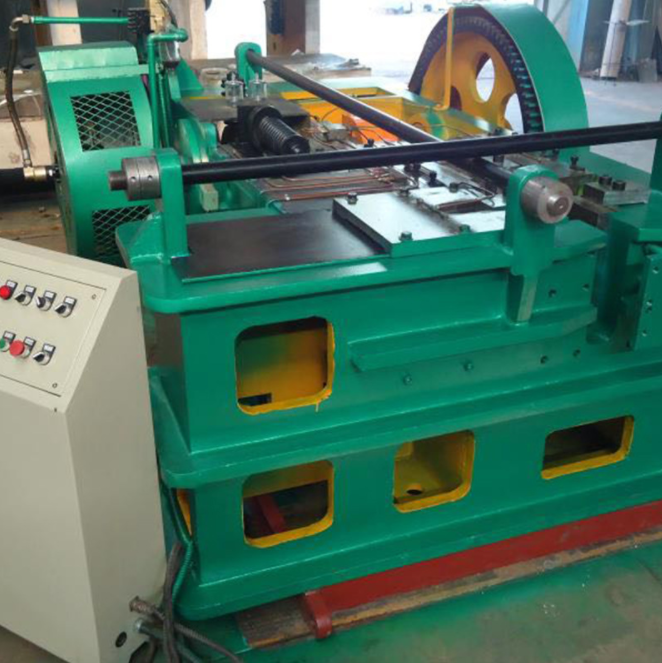

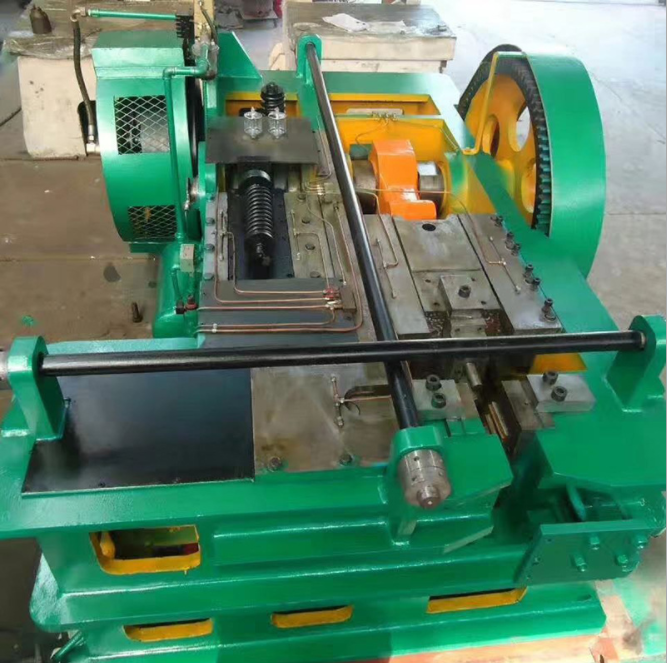

The DH10 Series Vertical Parting Flat Forging Machine is a medium-duty flat forging press developed on the technical foundation of AJAX (USA) National Machinery, optimized for extended workpiece forging and multi-cavity operations.
The machine adopts a dual-mechanism structure, independently driving the forging ram and the clamping die system. Both mechanisms operate according to a precise motion curve to ensure a stable, repeatable forging cycle.

With a long-guided upsetting slide capable of bearing high eccentric loads, the DH10 series is particularly suitable for elongated and irregular hot-forged components. The die clamping mechanism is equipped with overload protection, preventing damage during excessive clamping force. Compared with imported equipment, this machine delivers equivalent performance at approximately one-third of the cost, making it a highly cost-effective solution for forging enterprises.

Features & Benefits

• AJAX-Based Forging Technology
  Improved design derived from proven American flat forging technology.

• Dual-Drive Mechanism
  Separate systems for forging ram and die clamping ensure precise motion control.

• Long Guide Slide Design
  Supports large eccentric loads and multi-cavity forging processes.

• Overload Protection System
  Protects clamping mechanism and tooling during abnormal load conditions.

• Wide Length Forging Capability
  Suitable for workpieces from 200 mm up to 3 meters in length.

• PLC Control System
  Stable, reliable automation with user-friendly operation.

• Automatic Lubrication System
  Reduces wear and improves service life.

• Low Maintenance & High Durability
  Rugged structure designed for continuous industrial production.

Product Details

Product Parameters

Product Application

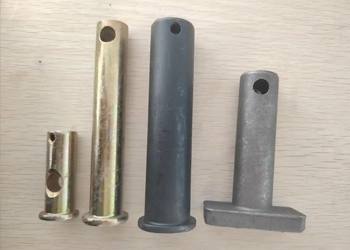

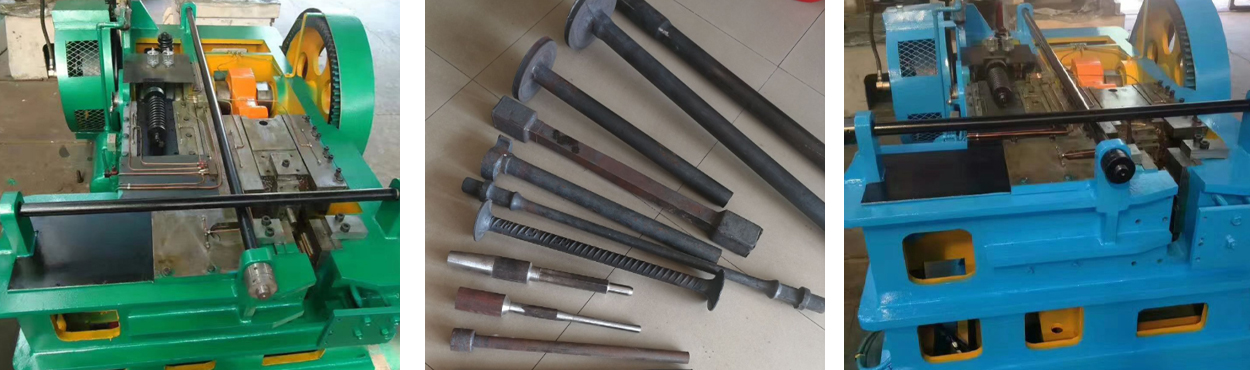

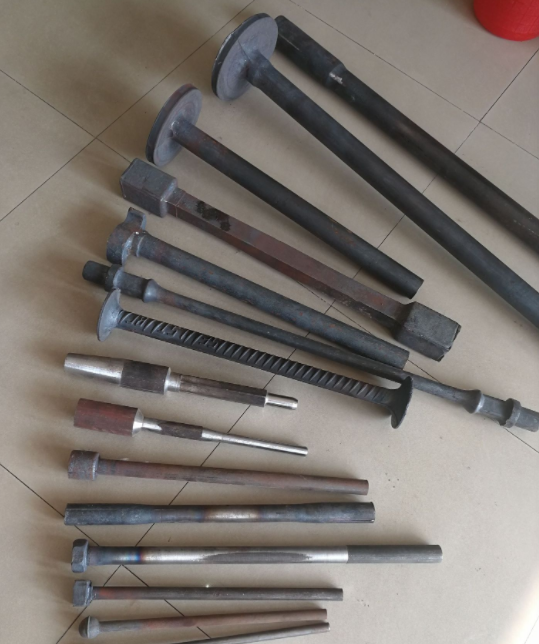

The DH10 Series is ideal for forging elongated hot-forged components, including but not limited to:

• Socket tools and extended hand tools

• Engine valve stems

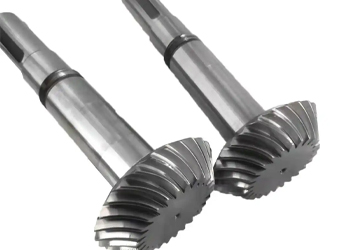

• Bevel gears with extended shafts

• Long bolts and ball-headed fasteners

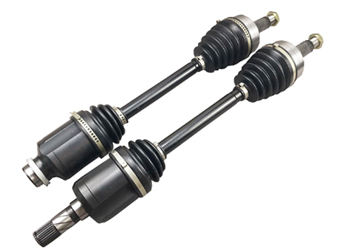

• Automotive half shafts

• Special-shaped extended forgings

Widely used in:

• Automotive forging plants

• Hardware and tool manufacturing

• Heavy machinery component production

• Industrial fastener factories


FAQ

Q1: What is the main advantage of the DH10 series compared to standard forging presses?
A: It is specifically designed for long and irregular forgings, supporting workpieces up to 3 meters.

Q2: Can the machine handle multi-cavity forging?
A: Yes, the long-guided slide allows stable operation under eccentric and multi-cavity loads.

Q3: Is the machine suitable for continuous production?
A: Yes, it is designed for high-duty industrial use with automatic lubrication and PLC control.

Q4: How does it compare with imported flat forging machines?
A: It offers similar performance at about one-third of the cost, with easier maintenance.

Q5: Does the clamping system have safety protection?
A: Yes, an overload protection device prevents damage during excessive clamping force.
