High Precision Heavy Duty Horizontal CNC Lathe Machine
High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine High Precision Heavy Duty Horizontal CNC Lathe Machine
  • High Precision Heavy Duty Horizontal CNC Lathe Machine
  • High Precision Heavy Duty Horizontal CNC Lathe Machine
  • High Precision Heavy Duty Horizontal CNC Lathe Machine
  • High Precision Heavy Duty Horizontal CNC Lathe Machine
  • High Precision Heavy Duty Horizontal CNC Lathe Machine
  • High Precision Heavy Duty Horizontal CNC Lathe Machine

High Precision Heavy Duty Horizontal CNC Lathe Machine

Item No.: LPMIE135
SH50 CNC lathe is a hard CNC machine tool. Suitable for carburizing and quenching, hardness hrc58-63 parts with the car grinding, compared with grinding processing efficiency, economic and environmental protection.
Request Quote PDF Format
Description
Description

Product  Description

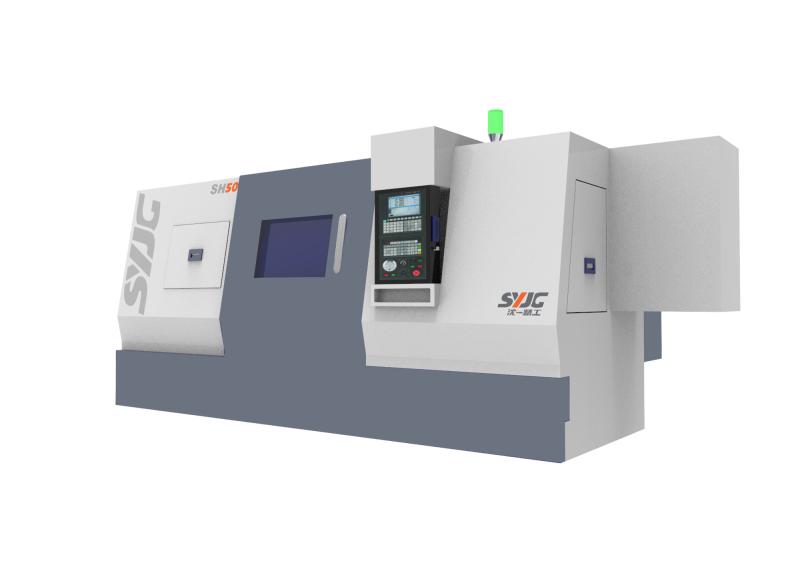

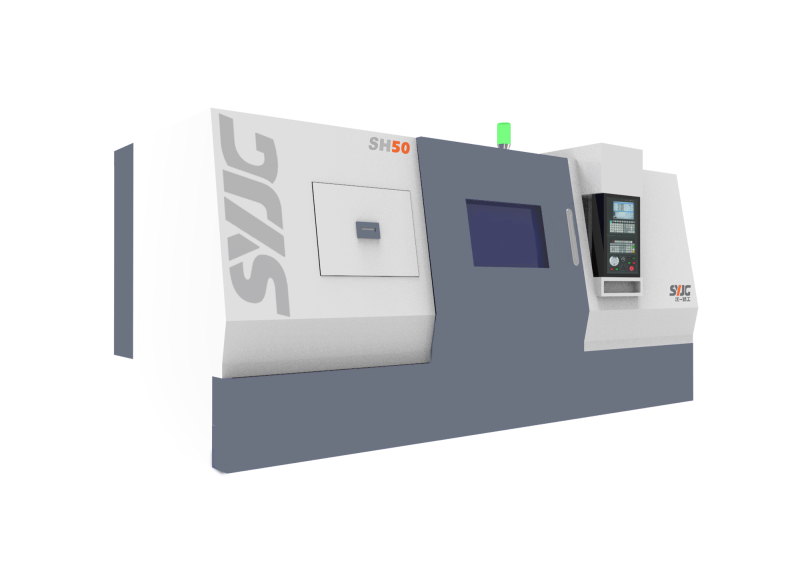

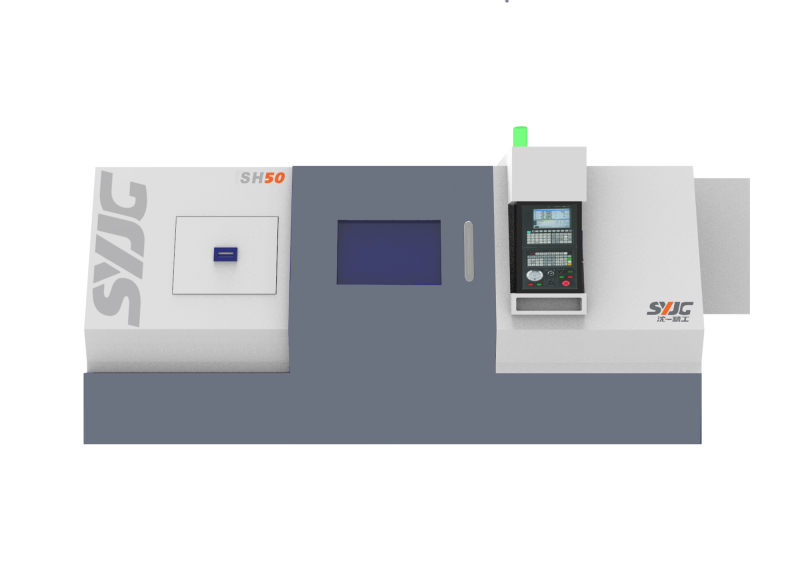

SH50 CNC lathe is a hard CNC machine tool. Suitable for carburizing and quenching, hardness hrc58-63 parts with the car grinding, compared with grinding processing efficiency, economic and environmental protection. Suitable for automotive, bearing and other industries, such as transmission gear shaft, intermediate shaft, gear, bearing ring and other parts processing.


Technical Parameters

Project
 		 Unit
 		 SH50

Max. Swing diameter
 		 mm
 		 720

Max. cutting length
 		 mm
 		 1000

Max. cutting diameter
 		 mm
 		 500

Max. rotary diameter on the pulley
 		 mm
 		 500

Type and code of spindle end
 		   A2-8

Main shaft hole diameter
 		 mm
 		 80

Maximum pass bar diameter
 		 mm
 		 65

Range of spindle speed
 		 R/min
 		 50~3500

Max. output torque of spindle
 		 Nm
 		 462

Main motor output power
 		 kw
 		 22/30

Diameter of chuck
 		 inch
 		 10”

X/Z axis fast moving speed
 		 M/min
 		 20

X axis travel
 		 mm
 		 270

Z axis travel
 		 mm
 		 1100

Taper of taper hole of tailstock spindle
 		 Mohs
 		 5#

Tailstock sleeve diameter
 		 mm
 		 120

Tailstock travel
 		 mm
 		 900

Tailstock sleeve stroke
 		 mm
 		 140

Standard tool rest type
 		   Servo horizontal 12 position

External circular knife
 		 mm
 		 25*25

Diameter of boring tool rod
 		 mm
 		 ∅40/∅32/∅25/∅20

Tool overall dimensions
 		 mm
 		 4780*2254*2182

The host weight
 		 kg
 		 7000


Details image
