High Speed Capping Machine | LPMIE

Item No.: 00400
High speed capping machine for food, medicine, cosmetics, chemical and other industries.
Description
Description

Product Overview

LP-200T High-Speed Bottle Capping Machine is widely used in chemical, food, health products, and pharmaceutical industries, offering a smooth, efficient, and damage-free capping process. The machine is economical, and easy to operate. This versatile in-line capper handles a wide range of containers at speed up to 160 bottles per minute and offers a quick and easy changeover that maximizes production flexibility. The tightening discs are gentle which will not damage caps but with an excellent capping performance.

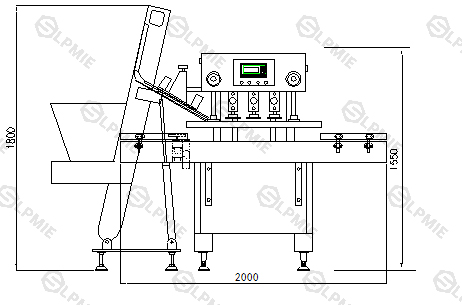

Structure diagram of high speed capping machine

Video presentation

Features & Benefits

  • The bottle clamping belt can be adjusted individually to match the capping of bottles of different heights and shapes.
  • Equipped with lifting motor to realize automatic lifting and lowering of capping machine.
  • Capping speed up to 120 BPM
  • The capping machine body shell is made of stainless steel 304 material, which meets GMP requirements.
  • The capping machine can be equipped with optional cap guiding device, the equipment is also suitable for capping caps with pump heads
  • Optional capping defective products and no aluminum foil detection mechanism
  • Optional data network interface for data storage and reading management.

Product Details

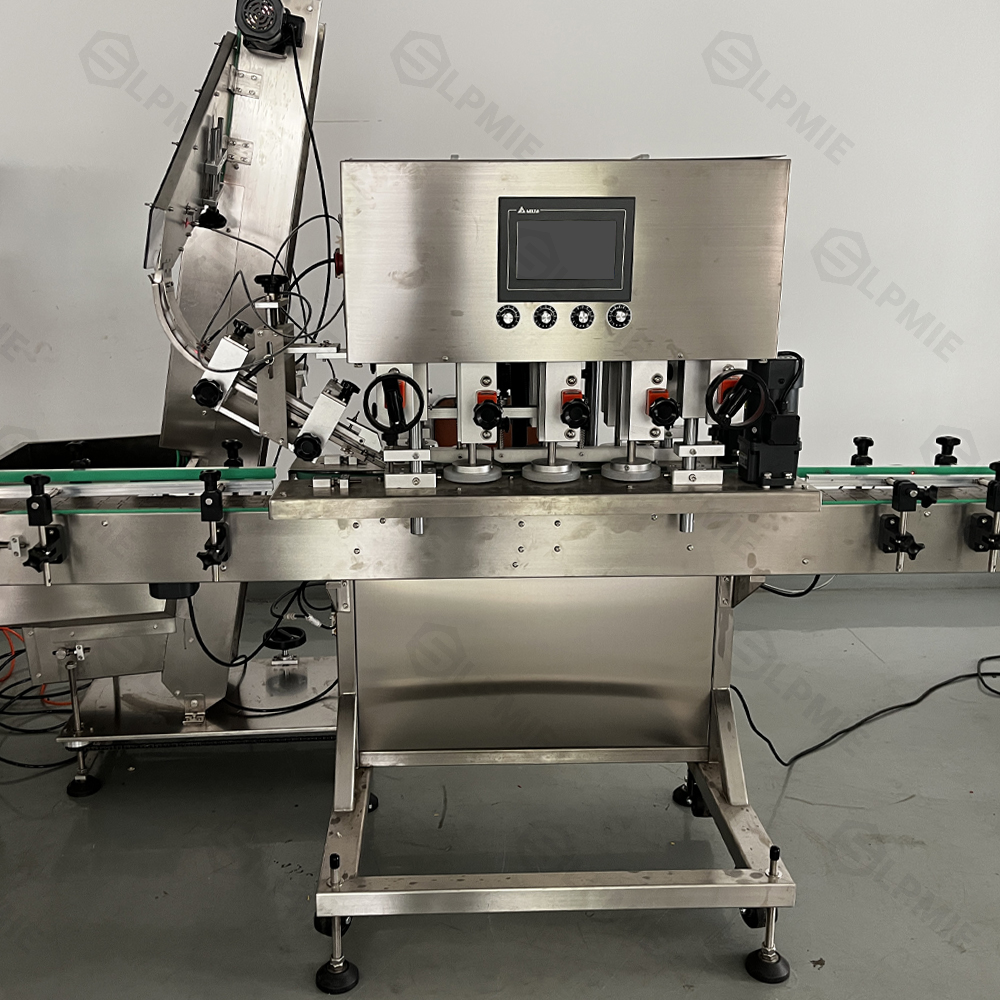

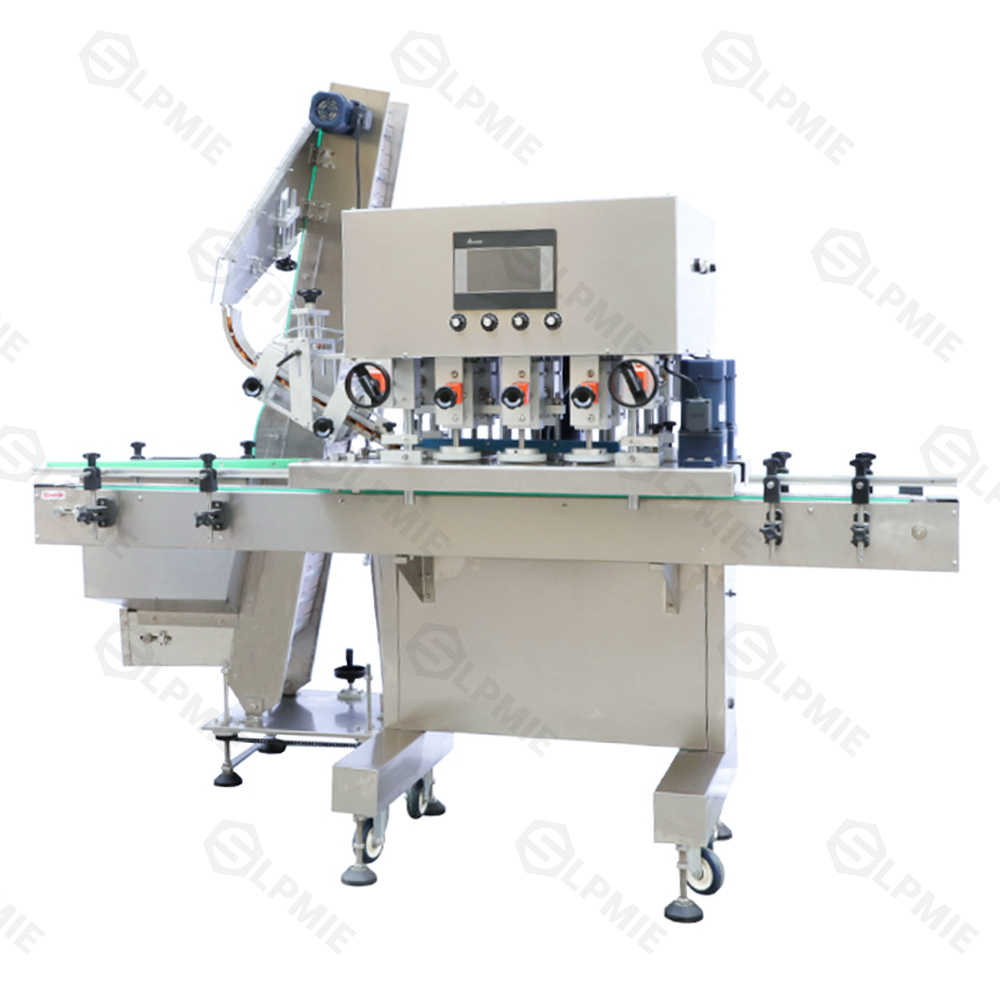

High-Speed Bottle Capping Machine

Product Parameters

Model LP-200T
Production capacity 30-120 BPM
Applicable cap diameter Φ30-Φ80 mm (can be customized according to customer requirements)
Applicable bottle diameter Φ30-Φ120 mm
Applicable bottle height 50-200 mm
Air consumption 0.5m³/M
Air pressure 0.4-0.6 MPA
Power 1.3 kw
Voltage 220V 50/60HZ
Overall dimension (mm) 2100×850×1600
Weight (kg) 550

Product Application

  • Cosmetic /personal care
  • Household chemical
  • Food & beverage
  • Nutraceutical
  • Pharmaceutical

    Screw the cap of the medicine bottle             Hot sauce capping             Drinking water cap
