Product Overview

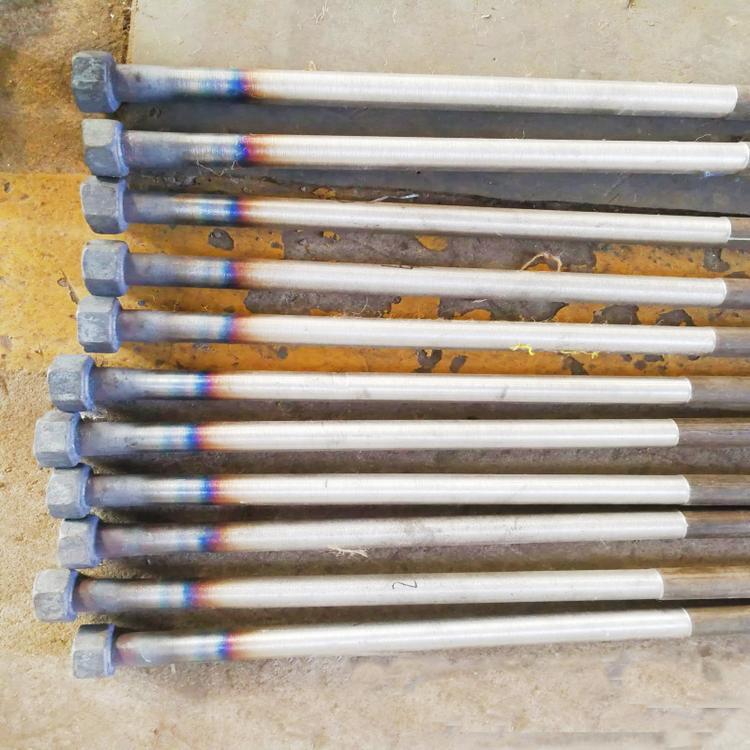

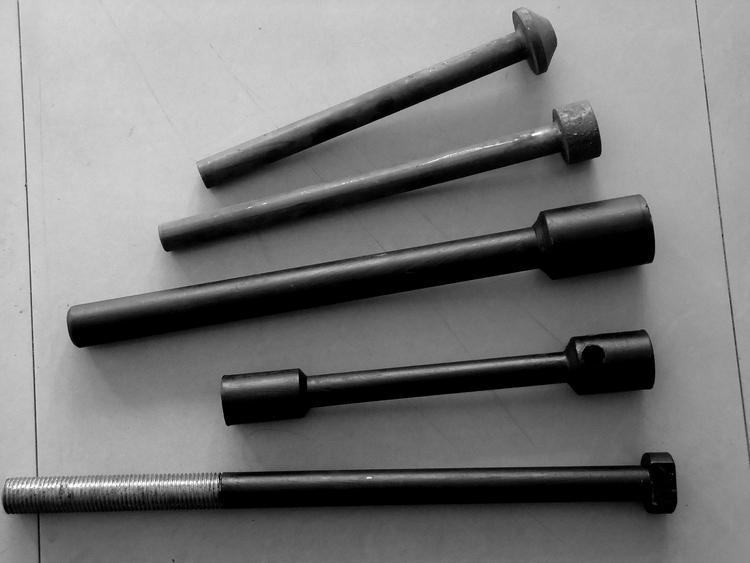

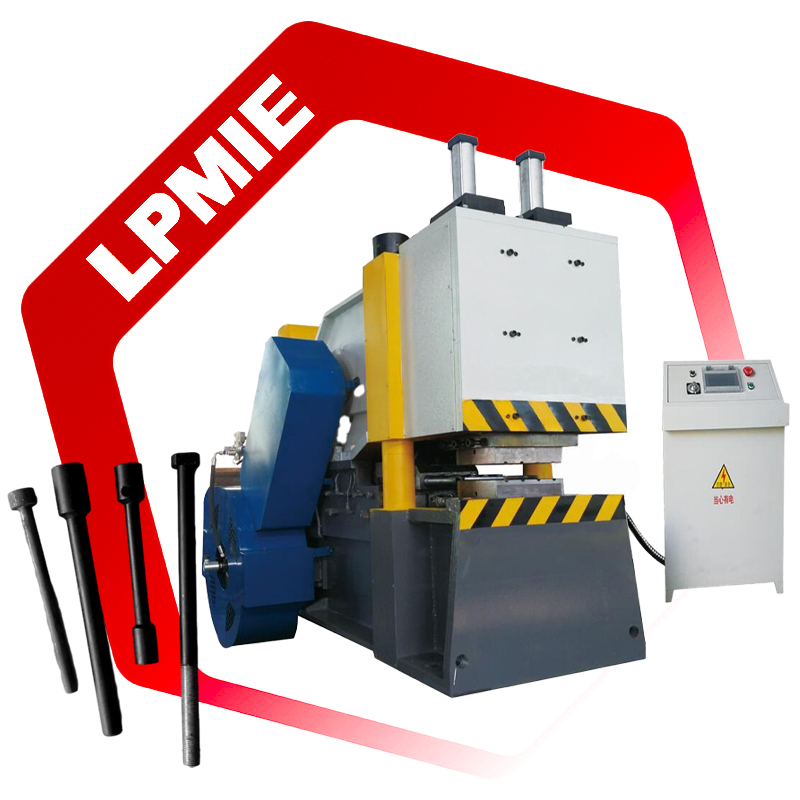

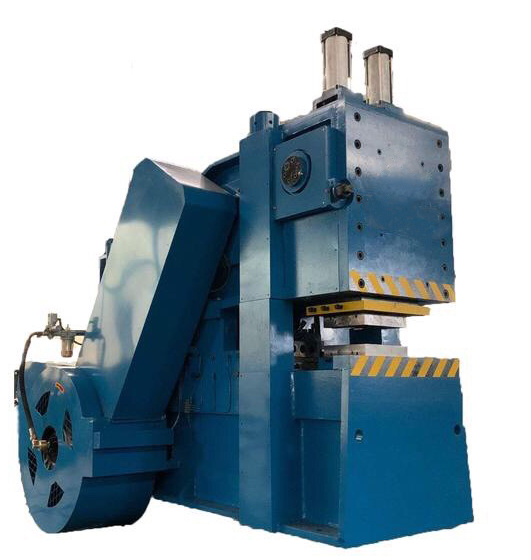

Name: HK series horizontal forging machine
Brand: Liaoyang Pharma Machinery Co., Ltd.
SKU: 00439
Availability: InStock
Rating: 5 (1 reviews)

The Horizontal Parting Forging Machine is a highly efficient and cost-effective forging solution designed for producing elongated and complex-shaped metal components. Featuring a horizontal die structure with an open-frame design, the machine ensures easy operation, convenient die replacement, and strong structural stability.

The upper frame is rigidly fixed and connected to the lower body through tension bolts, similar to an open-type press structure. This design enhances machine strength while maintaining operational flexibility. Equipped with advanced automation features such as a human-machine interface (HMI), automatic lubrication system, and fault alarm system, the machine significantly improves productivity and reduces manual workload.

Widely used in modern forging industries, this machine is ideal for manufacturing high-strength and precision forged parts.

Features & Benefits

Horizontal Die Structure

Ensures stable forging of long and complex workpieces.

Open Frame Design

Easy maintenance, convenient die installation, and improved accessibility.

High Automation System

Equipped with HMI, automatic lubrication, and alarm functions.

Strong Structural Stability

Fixed upper body with tension bolt connection enhances rigidity.

Cost-Effective Solution

High performance with competitive investment cost.

Product Parameters

Name	Unit	HK-80	HK-125	HK-160	HK-250	HK-315	HK-450	HK-630	HK-800	1000	1250	1600	2000	2500
Upsetting force	KN	800	1250	1600	2500	3150	4500	6300	8000	10000	12500	16000	20000	25000
Clamping force	KN	1060	1700	2100	3300	4200	6000	8500	10600	13200	17000	21200	26500	33500
Main slider stroke	mm	200	200	280	280	290	330	360	420	440	460	540	600	680
Number of trips	times/min	70	65	56	52	55	45	40	35	32	28	25	23	20
Slide stroke after clamping die is closed	mm	60	80	140	140	150	170	190	215	225	245	280	310	350
Clamping die opening degree	mm	80	80	100	135	150	160	200	220	230	250	270	300	340
Standard die size (L.R×F.B)	mm	320×305	320×305	350×320	350×320	420×400	450×430	530×450	580×500	650×550	720×600	760×680	850×700	950×750
Maximum die size (L.R×F.B)	mm	400×350	400×350	440×370	440×370	520×440	550×480	640×510	730×560	800×610	900×680	940×750	1030×760	1110×810
Total height of mould	mm	240	240	260	260	290	340	380	440	460	500	560	620	700
Compressed air pressure	Mpa	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55	0.55
Motor Power	KW	15	18.5	22	30	37	45	55	55	75	90	110	132	185
External dimensions(F.B×L.R)	mm	3650×1750	3650×1750	4210×2230	4210×2230	4735×2350	5260×2835	6050×3190	6640×3520	7230×3850	7965×4130	8670×4510	9320×4860	9950×5280
Height	mm	2270	2270	2590	2590	2860	3340	3950	4520	4860	5140	5490	5850	6230
Weight	T	14	14	23	23	31	46	75	97	140	175	205	240	270

Product Application

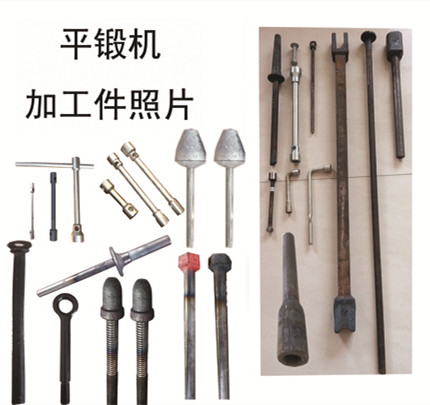

This horizontal forging machine is widely used for:

Upset forging and hot forging processes
Production of long shaft and irregular metal parts
Open die forging applications
Multi-cavity forging operations

Industries:

Railway and high-speed rail components
Automotive and transportation parts
Oil & gas equipment manufacturing
Hardware and tool production
Heavy machinery and industrial forging

FAQ

Q1: What is a horizontal parting forging machine used for?
A: It is used for forging long and complex metal components, especially in upset forging and open die forging processes.

Q2: What are the advantages of horizontal die structure?
A: It provides better stability for long workpieces and improves forming accuracy.

Q3: Is the machine automated?
A: Yes, it features HMI control, automatic lubrication, and alarm systems.

Q4: What industries commonly use this machine?
A: Railway, automotive, oil & gas, hardware, and heavy machinery industries.

Q5: Can it produce customized forged parts?
A: Yes, it is suitable for various irregular and custom-shaped components.
