Product Overview

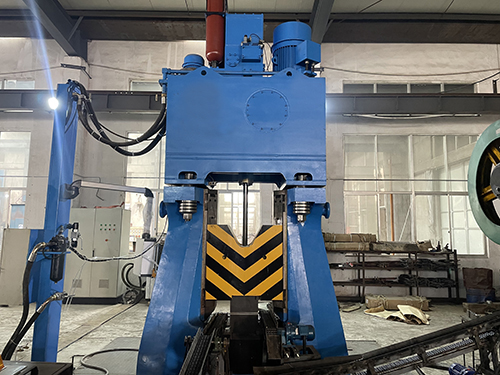

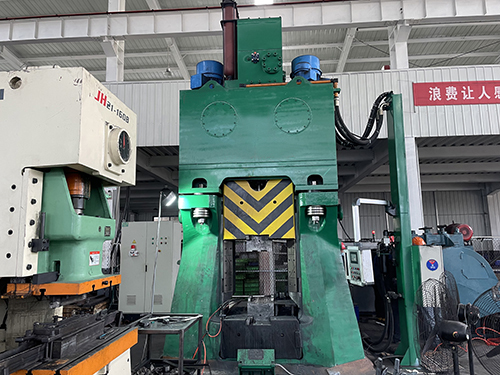

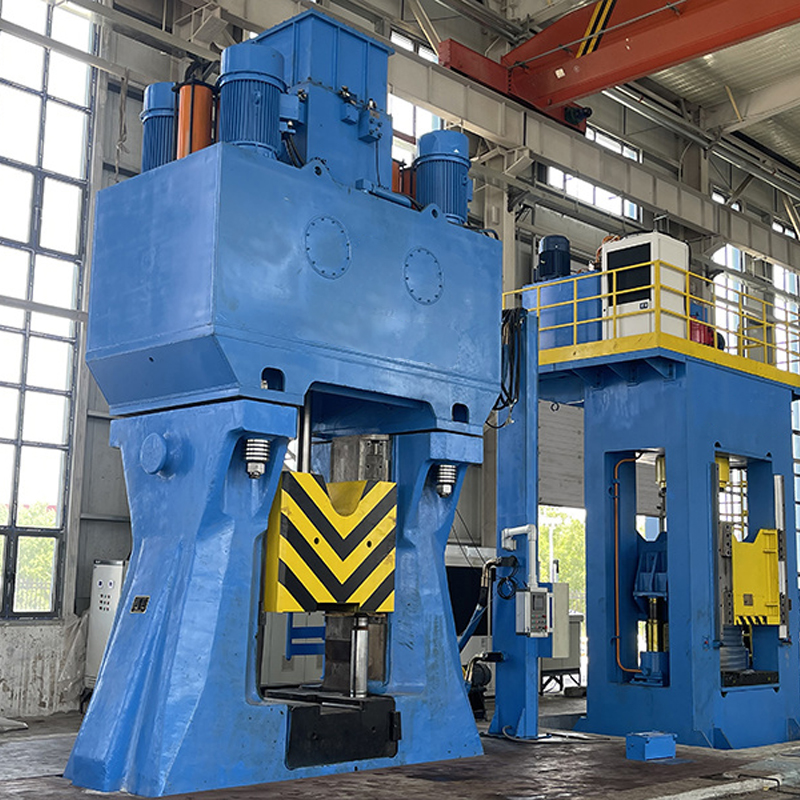

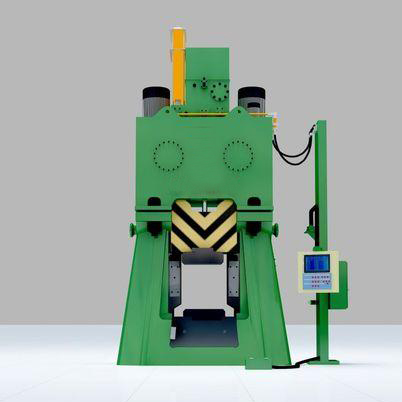

Name: Hydraulic Die Forging Hammer
Brand: Liaoyang Pharma Machinery Co., Ltd.
SKU: 00446
Availability: InStock
Rating: 5 (1 reviews)

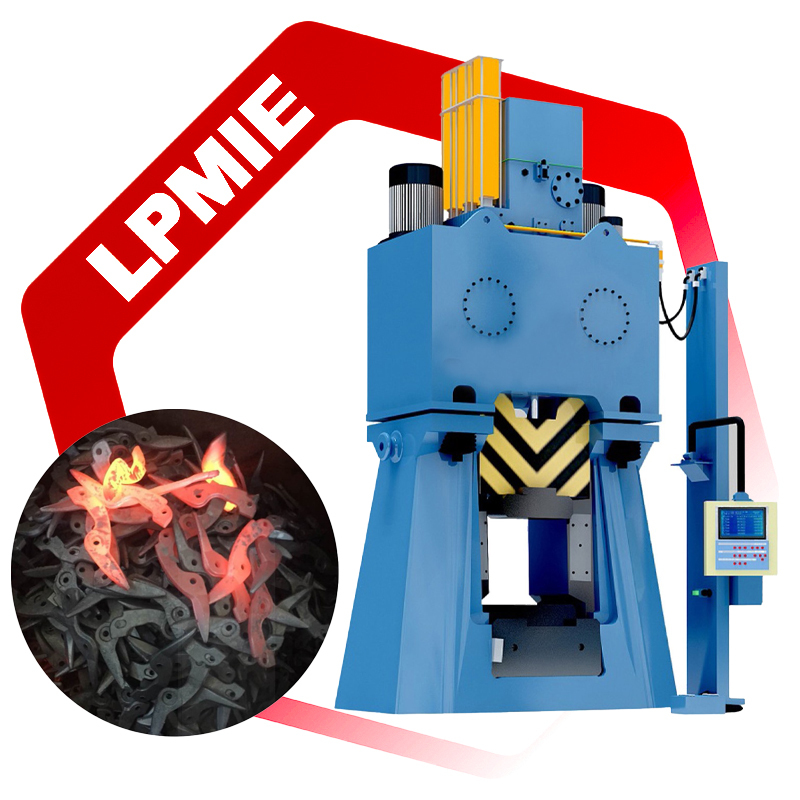

The C88K series programmable fully hydraulic die forging hammer adopts an integrated U‑type cast steel frame structure with high rigidity and stable performance. The hammer body is cast as a whole, eliminating the connection between the frame and base, reducing wear and improving the anti‑eccentric striking capacity of the whole machine. The hammer head is guided by a replaceable X‑shaped guide rail with three‑side embedded positioning, ensuring stable sliding, small clearance and precise alignment under thermal expansion. Automatic lubrication is adopted for reliable and maintenance‑free operation. The large hammer head structure and extended guiding length ensure stable striking energy at lower speed and higher forging precision. The fully hydraulic driving system and programmable control unit realize accurate control of striking energy and striking sequence, effectively reducing vibration and noise, improving forging consistency, prolonging service life of dies and lowering the operation difficulty. The control system is equipped with English fault display for fast troubleshooting and convenient maintenance. The cylinder‑valve integrated technology with a unique cylindrical cone valve realizes coaxial installation, no‑pipeline connection, faster response, higher control accuracy and more reliable sealing, which greatly improves energy efficiency and durability of the whole machine.

Video presentation
https://youtube.com/shorts/dQ2SpdX_hj0?feature=share

Features & Benefits

Equipped with a touch HMI, digital input, and automatic fault diagnosis & alarm display in Chinese and English.
Blow energy and working sequence are digitally adjustable. It reduces redundant striking energy, lowers impact noise and extends die service life.
Adopts integral U-shaped cast steel hammer body and radial X-type guide rail structure, ensuring high guiding accuracy of the hammer head.
Three-sided embedded guide rail positioning with specially designed anti-loosening guide rail bolts.
Highly integrated full-hydraulic control system with pipe-free connection design.
Optimized systematic safety protection design to guarantee safe operation of the forging hammer.
Imported accumulators are directly mounted on the hydraulic manifold block, improving transmission efficiency and facilitating equipment maintenance.
Advanced poppet valve design features fast response, superior sealing performance and low internal leakage.
Flexible design with swing-type combined cylinder and elastic hammer rod, plus high & low pressure double external leakage prevention, greatly enhancing equipment reliability.
The hammer head can be lifted and lowered slowly under hydraulic pressure relief status, ensuring safer die replacement.
Built-in hydraulic buffer structure ensures stable, coordinated and safe movement of the hammer head.

Product Details

Product Parameters

Model	/	16	25	31.5	40	50	63	80	100	125	160	200	250
Blow Energy	kJ	16	25	31.5	40	50	63	80	100	125	160	200	250
Rail Span	mm	505	615	670	670	775	835	895	965	965	1040	1040	1100
Max. Blowing Frequency	min^{- 1}	90	90	85	80	80	80	75	75	70	60	60	55
Hammer Head Weight	kg	1150	1860	2300	2700	3760	4530	5600	7000	8500	9600	10500	12000
Falling Parts Weight	kg	1350	2100	2700	3100	4200	5000	6300	8000	10000	11500	13000	15000
Total Machine Weight	t	26	42	52	62	82	104	123	156	195	245	270	310
Main Motor Power	kw	30	55	55	75	2×55	2×55	2×90	2×90	2×110	3×90	3×110	4×90
