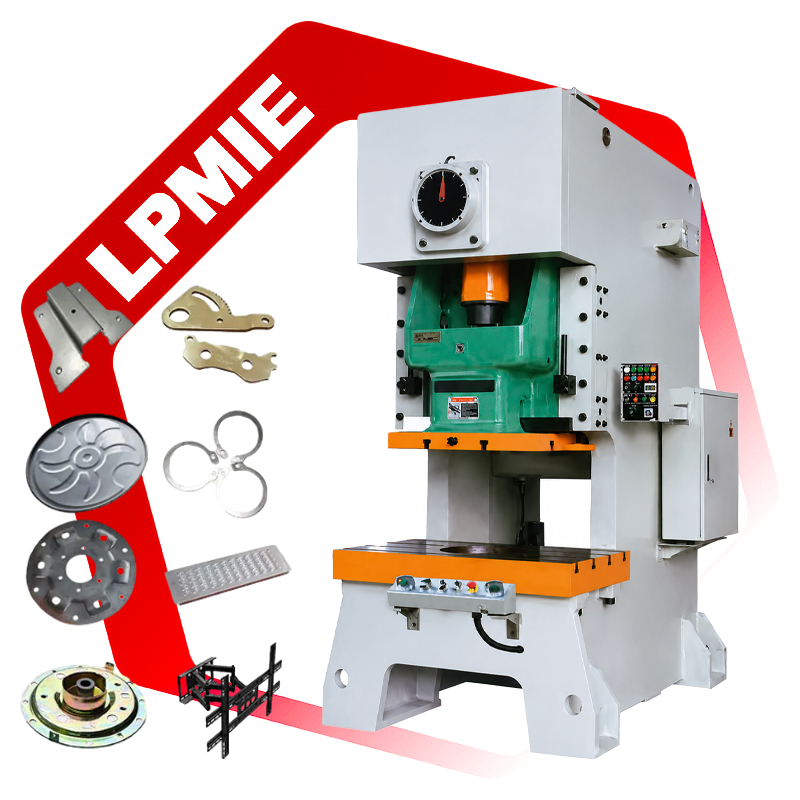

Product Overview

The J21 Series Open Type Pneumatic Power Press is a high-efficiency metal stamping and forming machine designed for punching, blanking, bending, embossing, and sheet metal processing applications. Featuring a rigid welded steel frame structure with stress-relief heat treatment, the machine delivers excellent precision, stable performance, and long-term durability.

This pneumatic power press adopts an advanced pneumatic clutch and brake system, enabling sensitive operation, fast response, low noise, and enhanced operational safety. The machine supports inching, single stroke, and continuous operation modes, making it suitable for various metal forming processes in industrial manufacturing.

Equipped with a rectangular guide rail structure, high-strength crankshaft, automatic lubrication system, and optional overload protection device, the J21 series provides reliable and efficient production performance for automotive parts, hardware products, electrical components, kitchenware, and metal fabrication industries.

The adjustable stroke and stroke speed design allow the machine to adapt to different production requirements, improving flexibility and manufacturing efficiency.

Features & Benefits

High-Rigidity Welded Steel Frame

• Steel plate welded body with tempering treatment
• Excellent rigidity and deformation resistance
• Stable precision during continuous operation

Pneumatic Clutch & Brake System

• Dry pneumatic friction clutch and brake
• Sensitive response and reliable operation
• Lower noise and reduced impact during operation

Adjustable Stroke & Speed

• Stroke and stroke frequency adjustable
• Suitable for multiple stamping applications
• Improves production flexibility

High-Strength Crankshaft System

• Crankshaft undergoes quenching and grinding treatment
• Smooth transmission and long service life
• Stable high-speed operation

Precision Rectangular Guide Rail

• High guiding accuracy and strong stability
• Reduces slide movement deviation
• Improves stamping precision

Pneumatic Balancing Device

• Balances slide and upper die weight
• Reduces vibration and impact noise
• Minimizes guide rail clearance

PLC Electrical Control System

• Supports inching, single stroke, continuous operation, and emergency stop
• Flexible and safe operation
• Optional PLC centralized control available

Automatic Lubrication System

• Ensures sufficient lubrication for key components
• Reduces wear and maintenance costs
• Improves machine lifespan

Optional Safety Configurations

• Hydraulic overload protection device
• Photoelectric safety protection system
• Variable frequency speed control system

Product Parameters

Product Application

The J21 series is widely used in metal sheet processing and stamping industries.

Typical Applications

• Metal punching
• Sheet metal blanking
• Bending and forming
• Embossing and coining
• Hardware stamping
• Metal component shaping
• Appliance part production
• Automotive metal parts processing

Applicable Industries

• Automotive manufacturing
• Hardware processing
• Electrical appliance industry
• Kitchenware manufacturing
• Metal fabrication workshops
• Machinery manufacturing
• Construction hardware production
• Industrial parts stamping factories


FAQ

1. What materials can the J21 press machine process?

It can process carbon steel, stainless steel, aluminum, copper, galvanized sheet, and other metal materials.

2. What operations can this power press perform?

The machine supports punching, blanking, bending, embossing, forming, and stamping operations.

3. Is the machine suitable for continuous production?

Yes. The machine supports continuous automatic operation with stable performance and high efficiency.

4. What safety features are included?

Optional safety features include hydraulic overload protection, emergency stop, and photoelectric safety devices.

5. Can the stroke speed be adjusted?

Yes. The machine allows adjustable stroke and operating speed based on production needs.

6. Does the machine support automatic production lines?

Yes. PLC control and automation interfaces can be configured for automated stamping lines.

7. What type of lubrication system does it use?

The machine adopts centralized automatic lubrication for key transmission components.

8. What are the advantages of pneumatic clutch operation?

Pneumatic clutch systems provide smoother operation, faster response, lower noise, and higher reliability compared with traditional mechanical systems.
