Product Overview

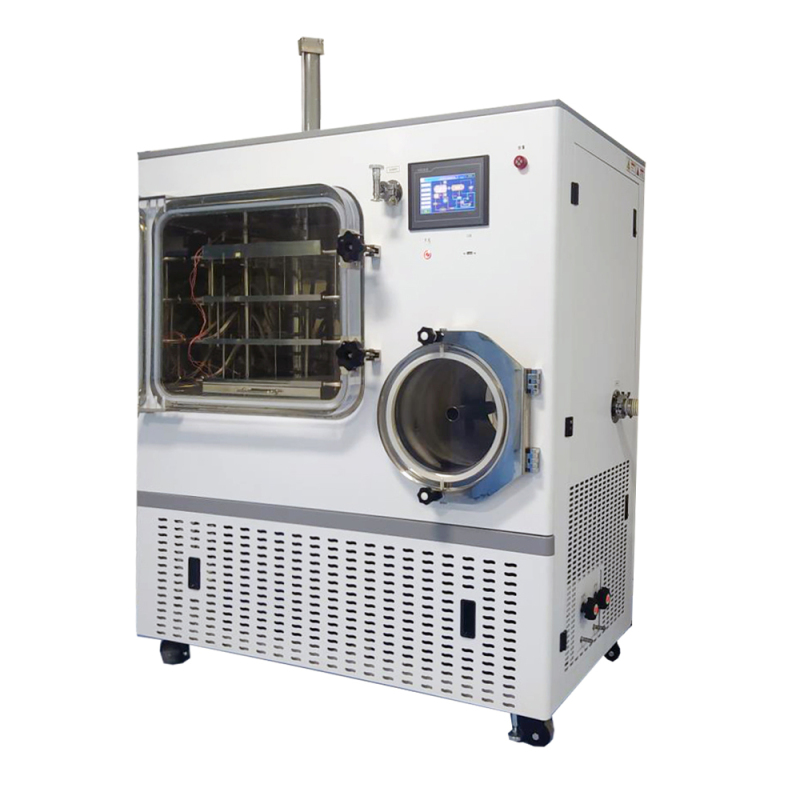

Name: Pilot Freeze Dryer Gland Type | LPMIE
Brand: Liaoyang Pharma Machinery Co., Ltd.
SKU: 00379
Availability: InStock
Rating: 5 (1 reviews)

This capping freeze dryer is high-performance, multi-functional lyophilization equipment. It transcends traditional limits, enabling professional drying of bulk (liquid, paste, solid) and vial samples. Users dispense samples into vials, loosely cap them, then dry. Afterward, the capping mechanism creates a tight seal, shielding samples from contamination and moisture, ensuring long-term stability and enhanced quality.

Video presentation

Features & Benefits

1. Wide Applicability: Processes both bulk (liquid, paste, solid) and vial samples, meeting diverse user and application requirements.
1. Capping Sealing Design: Tightly seals vials post-lyophilization, preventing contamination and moisture reabsorption for long-term stable storage.
1. Rich Optional Features: Offers various add-ons such as eutectic point tester, lyophilization endpoint detection, anti-backflow device for vacuum pump, oil mist filtration system, mobile APP monitoring, LYO-MEGA software, data logger, backfill filter, automatic backfill & drainage control, capacitive vacuum gauge, and external vial hanging device. Users can customize their lyophilization solutions for improved efficiency and quality.
1. User-Friendly Operation: The simple operation process allows even first-time users to get started quickly. With detailed manuals and comprehensive after-sales service, users receive full support.
1. High Efficiency and Energy Saving: Adopts advanced lyophilization technology and energy-saving design, reducing energy consumption while maintaining excellent lyophilization results, achieving both economic and environmental benefits.

Product Details
Product Parameters

Model	LGJ-50Y	LGJ-100Y	LGJ-200Y
Freeze-drying area (㎡)	0.5	1.15	2.2
Shelf size (mm)	410×410	480×600	610×910
Baffle layer number	3+1	4+1	4+1
Shelf temperature range (℃)	-55~+70, optional -65~+70, -75~+80, -100~+80
Cold trap temperature (℃)	≤-75/≤-85/≤-110 (no load)
Water trapping capacity (kg/24h)	≥10	≥15	≥30
Installed power (kw)	6.5	7.5	14.5
Ф16mm (2ml) Vials quantity	≥ 2058 Vials	≥ 4788 Vials	≥ 7600 Vials
Ф22mm (10ml) Vials quantity	≥ 1050 Vials	≥ 2460 Vials	≥ 3888 Vials
Host external size (mm)	1730×935×1855	1823×1144×2014	2193×1402×2370
Host Weight (kg)	800	1000	1500

Product Application

Pharmaceutical industry: Widely used in the production of biopharmaceuticals, Chinese medicine preparations, chemical drugs, such as vaccines, injection powder, etc., to ensure product stability and efficacy.
Food industry: Used for freeze-drying processing of high-end food and functional food, such as freeze-dried fruits, coffee, probiotic powder, etc., to retain the nutritional value and flavor.
Biotechnology industry: Supporting scientific research sample preparation and diagnostic reagent production to meet the demand for long-lasting product preservation in the laboratory and diagnostic industry.
Chemical industry: Suitable for lyophilization of high-purity chemicals and nanomaterials to ensure the stability of chemical properties and preservation of activity.
Cosmetic industry: Used in the production of high-end skin care products, such as lyophilized masks and lyophilized essence powders, to meet consumer demand for high-quality beauty products.

With stainless steel and silicone oil heating, this machine is particularly suitable for industries that require high product quality and stability.

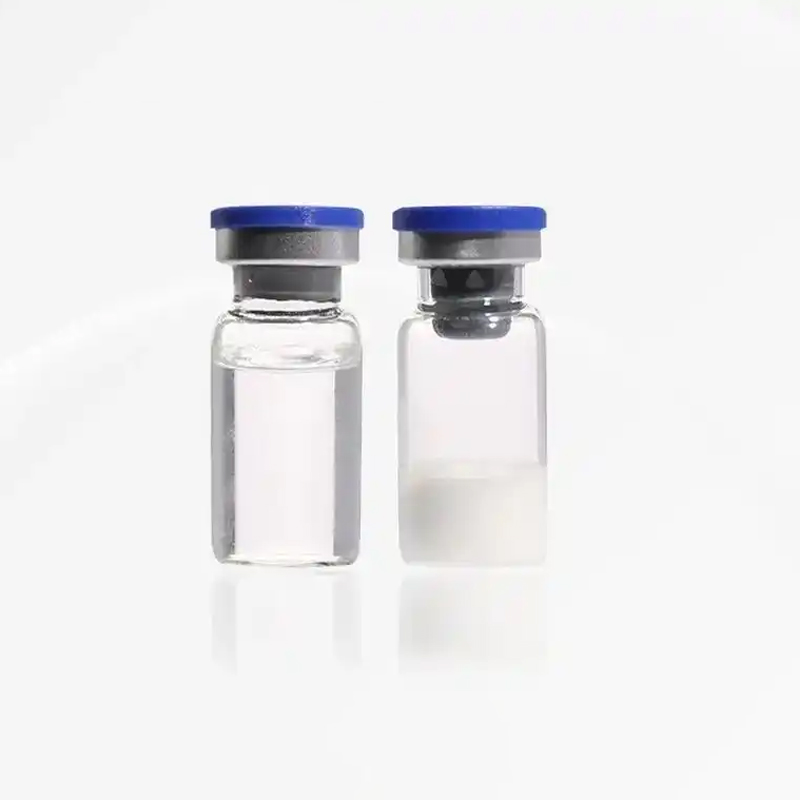

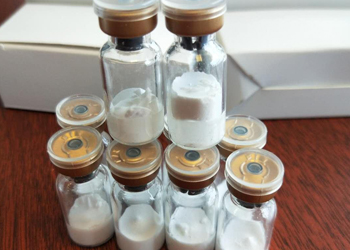

vial bottle for freeze-dried storage The freeze-dried powder is in the vial Freeze-dried vegetables

FAQ

1. Q: Is this capping freeze dryer difficult to operate?

A: The operation process is carefully designed for simplicity. It comes with detailed manuals and video tutorials. If you have any questions, our professional after-sales team is always ready to assist.

2. Q: Can the optional features be purchased and installed separately?

A: Yes. You can purchase optional feature components according to your needs. Our technicians will provide on-site installation and debugging to ensure normal operation.

3. Q: Are there requirements for vial sample specifications?

A: Our equipment is compatible with various common vial specifications. Before purchase, contact our customer service with your specific vial specifications, and we'll confirm compatibility.
