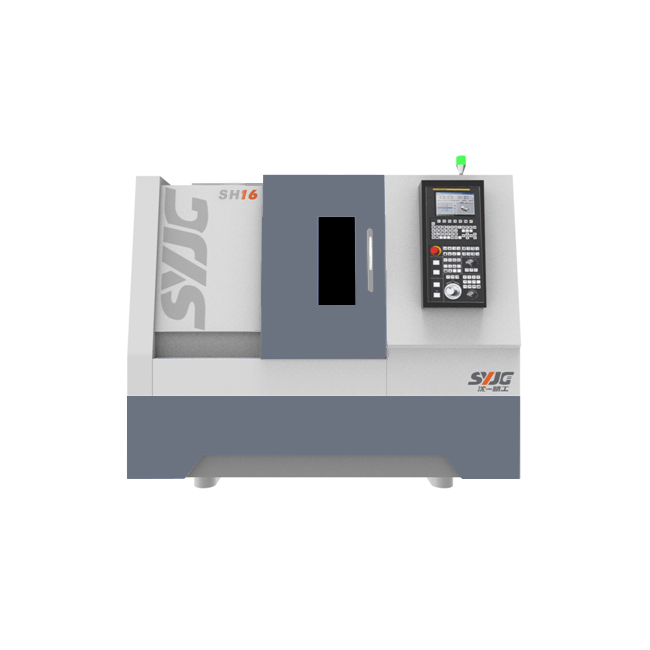

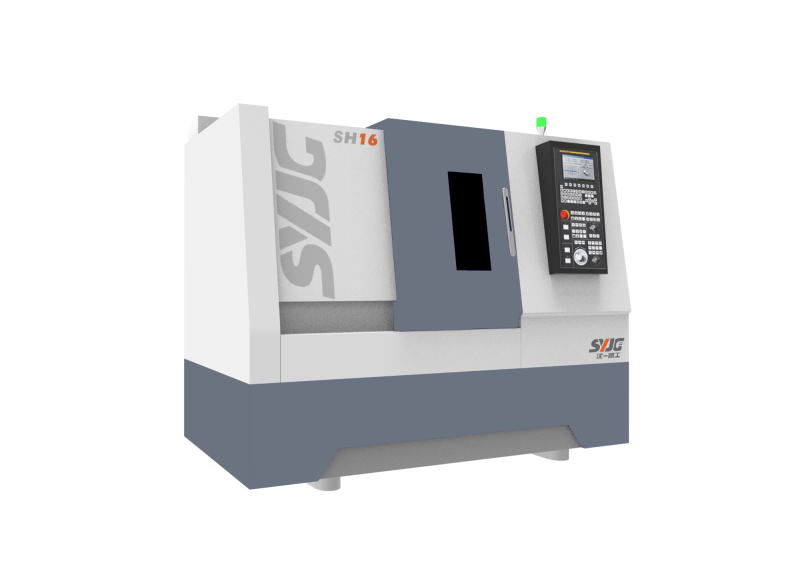

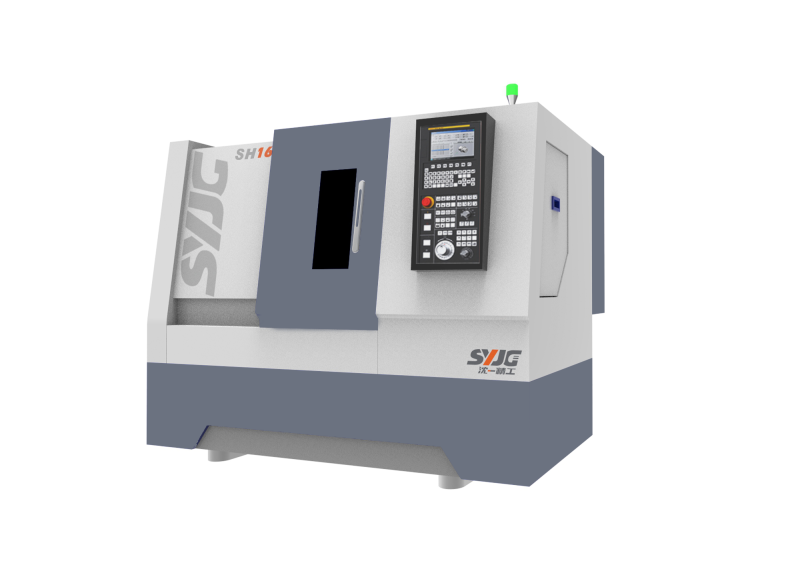

SH16/16L Turning Applications Slant Bed CNC lathe Machines

Description

Product Description

SH16 series CNC row tool lathe is a new generation with full protection, high rigidity and high reliability.According to the processing characteristics, it has carried out a variety of structural support and configuration combinations to create the optimal cost performance ratio, which is the best choice for efficient processing of black metal and non-ferrous metal parts.

Technical Parameters

Project	Unit	SH16	SH16L
Max. Swing diameter	mm	500	500
Max. cutting length	mm	300	300
shaft parts	mm	130	130
disc parts	mm	230	360
Max. rotary diameter on the pulley	mm	130	130
Type and code of spindle end		A2-5	A2-6
Main shaft hole diameter	mm	56	65
Randg of spindle speed	R/min	50~4500	50~4500
Max. output torque of spindle	Nm	59	177
Main motor output power	kw	5.5/7.5	11/15
Diameter of chuck	inch	6''	8''
X/Z axis fast moving speed	M/min	30	30
X/Z axis travel	mm	400	400
Standard tool rest type		Row knives	Row knives
External circular knife	mm	20*20	25*25
Diameter of boring tool rod	mm	∅25	∅40
Tool overall dimensions	mm	220017501800	220017501800
The host weight	kg	3000	3000
