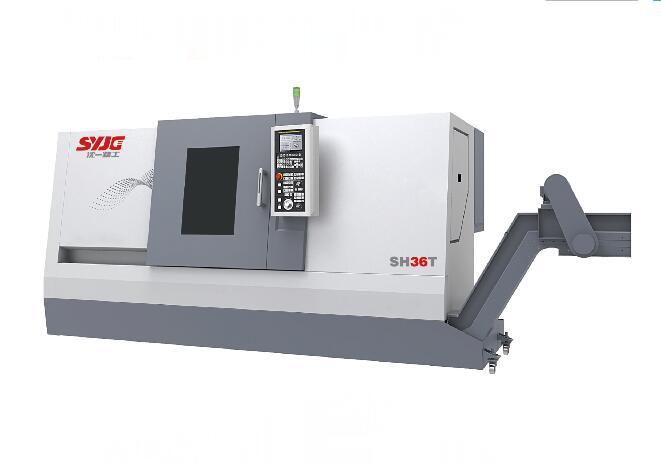

SH36T Series CNC Lathe Machine Tool Equipment
SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment SH36T Series CNC Lathe Machine Tool Equipment
  • SH36T Series CNC Lathe Machine Tool Equipment
  • SH36T Series CNC Lathe Machine Tool Equipment
  • SH36T Series CNC Lathe Machine Tool Equipment
  • SH36T Series CNC Lathe Machine Tool Equipment
  • SH36T Series CNC Lathe Machine Tool Equipment

SH36T Series CNC Lathe Machine Tool Equipment

Item No.: LPMIE136
SH36T horizontal CNC lathe is a new product designed and produced in accordance with the market and development, based on German technology as the platform, combined with our experience in designing horizontal CNC lathe for many years.The main performance
Request Quote PDF Format
Description
Description

Product Description

SH36T horizontal CNC lathe is a new product designed and produced in accordance with the market and development, based on German technology as the platform, combined with our experience in designing horizontal CNC lathe for many years.The main performance indexes of this product reach the international advanced level, with super high precision and stability, high rigid structure with large cutting amount, so that customers get high efficiency, low cost, pure German machine tool.This machine tool can process shaft and disc parts, the inside and outside surface of thread, arc, cone and rotary body, and carry out high-efficiency, high-volume and high-precision processing for rotating body parts.


Technical Parameters

Project
 		 Unit
 		 SH36T
 		 SH36TL

Max. Swing diameter
 		 mm
 		 560
 		 560

Max. cutting length
 		 mm
 		 500
 		 1000

Max. cutting diameter
 		 mm
 		 280
 		 280

Max. rotary diameter on the pulley
 		 mm
 		 350
 		 350

Type and code of spindle end
 		   A2-6
 		 A2-6

Main shaft hole diameter
 		 mm
 		 65
 		 65

Range of spindle speed
 		 R/min
 		 50~4500
 		 50~4500

Max. output torque of spindle
 		 Nm
 		 235
 		 235

Main motor output power
 		 kw
 		 11/15
 		 11/15

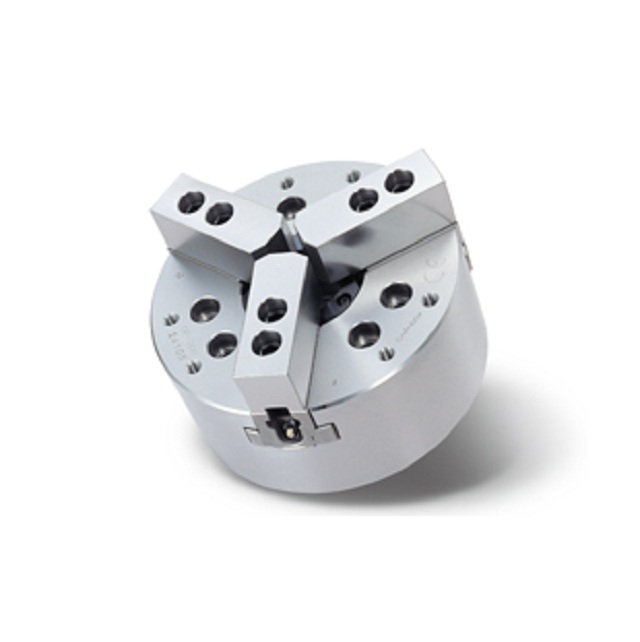

Diameter of chuck
 		 inch
 		 8”
 		 8”

X/Z axis fast moving speed
 		 M/min
 		 30
 		 30

X axis travel
 		 mm
 		 200
 		 200

Z axis travel
 		 mm
 		 560
 		 1050

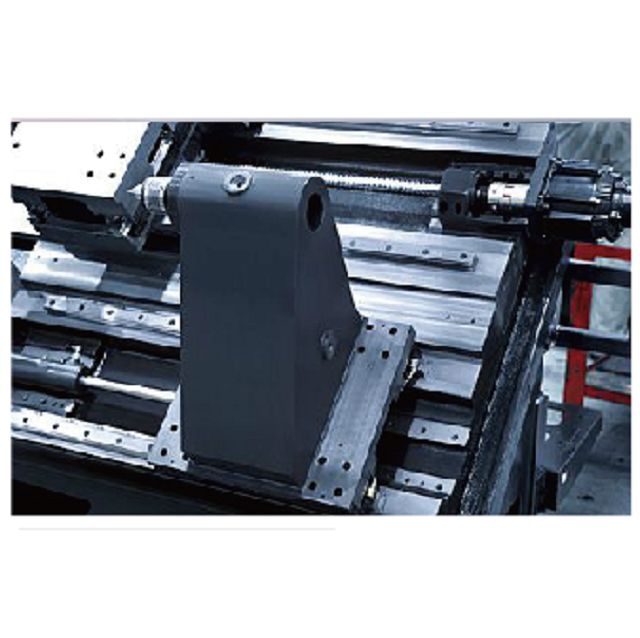

Taper of taper hole of tailstock spindle
 		 Mohs
 		 5#
 		 4#

Tailstock travel
 		 mm
 		 450
 		 900

Tailstock sleeve stroke
 		 mm
 		   100

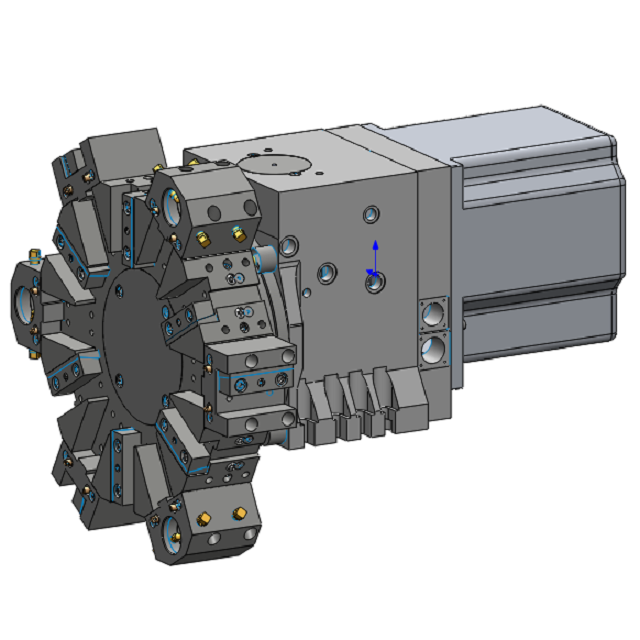

Standard tool rest type
 		   Horizontal type 8 position
 		 Horizontal type 8 position

External circular knife
 		 mm
 		 25*25
 		 25*25

Diameter of boring tool rod
 		 mm
 		 ∅40/∅32/∅25/∅20
 		 ∅40/∅32/∅25/∅20

Tool overall dimensions
 		 mm
 		 2950*1860*1850
 		 3570*1860*1850

The host weight
 		 kg
 		 4050
 		 4500

Dimensions of side chip cleaner
 		 mm
 		 4200*1400*1400
 		 4800*1500*1500



Details image
