Product Overview

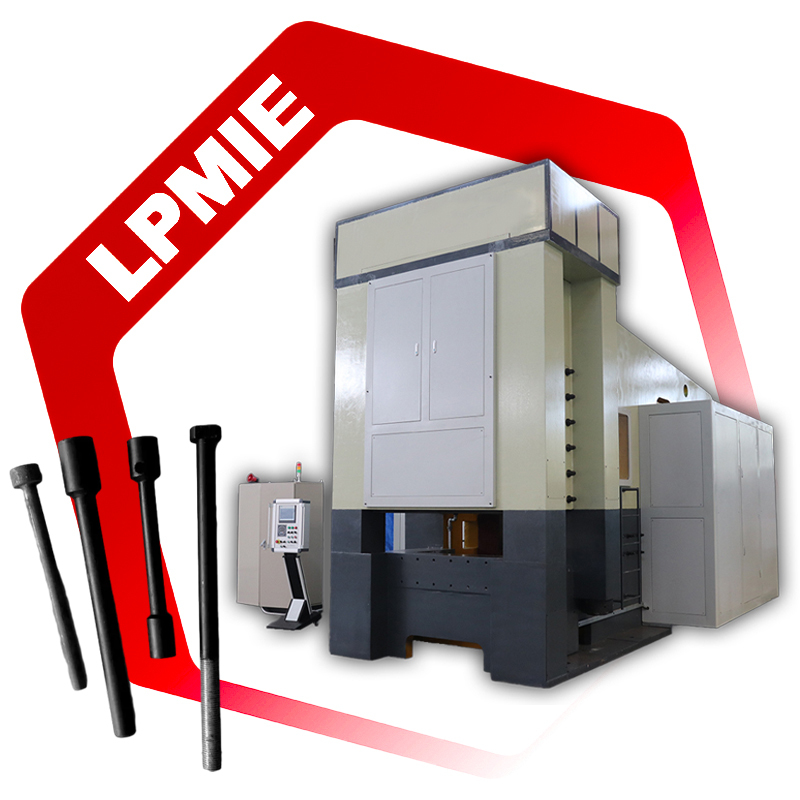

Name: SJ11 series horizontal forging machine
Brand: Liaoyang Pharma Machinery Co., Ltd.
SKU: 00444
Availability: InStock
Rating: 5 (1 reviews)

The SJ11 Series Horizontal Parting Forging Machine is a heavy-duty forging solution designed for high-strength and precision hot forging applications. Built with a steel plate welded frame structure and pre-tightened upper and lower body using tension bolts, the machine delivers outstanding rigidity, stability, and long-term durability under continuous industrial operation.

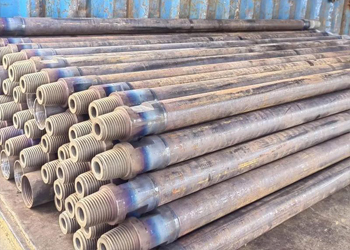

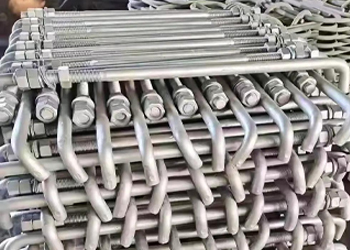

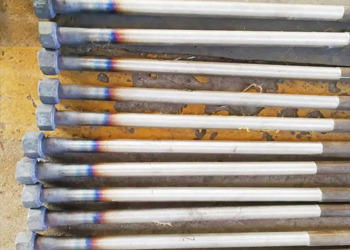

This forging machine is especially suitable for large and long-bar forged components that require upsetting, punching, shaping, and precision forming. Widely used in aerospace, automotive, railway, oilfield, and heavy machinery industries, the SJ11 series is ideal for manufacturing aircraft engine blades, automotive axle shafts, long rods, special-shaped forgings, and other demanding metal parts.

Equipped with an advanced dry pneumatic friction clutch-brake system, imported dual safety valves, PLC centralized control, overload protection, and automatic lubrication, the machine ensures reliable operation, fast response, and enhanced production efficiency. Automation interfaces are reserved for integration with robotic forging lines and intelligent factory systems.

Features & Benefits

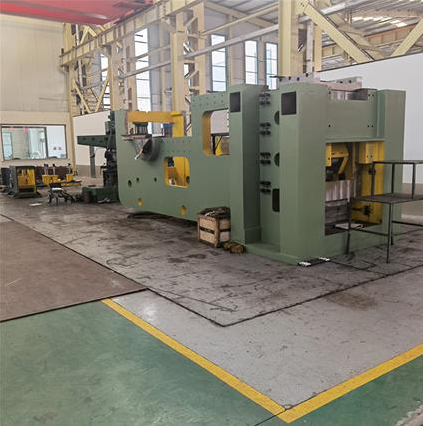

Heavy-Duty Welded Frame Structure

Steel plate welded body with tension-bolt preloading
High rigidity and excellent anti-deformation performance
Stable operation during high-impact forging processes

High Precision Extended Guide Rail

Extended slide guide rails improve guiding accuracy
Enhanced machine stability and forging consistency
Suitable for precision forging of long workpieces

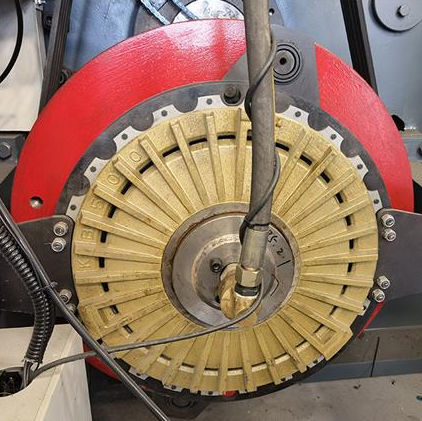

Pneumatic Friction Clutch & Brake System

High-performance dry pneumatic clutch-brake
Controlled by imported duplex safety valves
Fast response, smooth operation, safe and reliable

PLC Intelligent Control System

Imported PLC centralized electrical control
Supports inching, single-stroke, continuous operation, and emergency stop
Reserved automation interface for robotic production lines

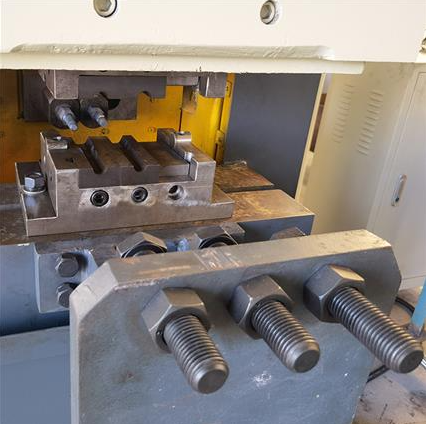

Adjustable Clamping Force

Electrically adjustable clamping force
Easier setup for different forging requirements
Improves flexibility for multiple workpiece sizes

Hydraulic-Pneumatic Overload Protection

Prevents machine damage caused by overload
Increases equipment safety and service life

Centralized Automatic Lubrication

Forced thin-oil lubrication system
Sufficient lubrication with optimized oil return design
Cleaner workshop environment without oil leakage

Angle Blowing & Manual Blowing Interface

Improves die cleaning efficiency
Reduces residue accumulation during forging

Product Parameters

Name	Unit	Technical parameters
Upsetting Nominal Force	kN	12500
Clamping Nominal Force	kN	17000
Nominal Force Stroke	mm	15
Upsetting Slide Stroke	mm	440
Strokes Per Minute (SPM)	s.p.m	32
Clamp slider stroke	mm	215
Standard Die Cavity Dimensions (L×W×H)	mm	800600250
Max. Die Cavity Dimensions (L×W×H)	mm	1100680250
Height of clamping mould center from ground	mm	1140
Punch Holder Slot Dimensions (L×H×W)	mm	800210450
Main motor power	kW	90
Post-Close Stroke × Pre-Open Stroke	mm	215*100
Lubrication pump motor power	kW	1.5
Dimensions(Lx W x H)	mm	700046504630
