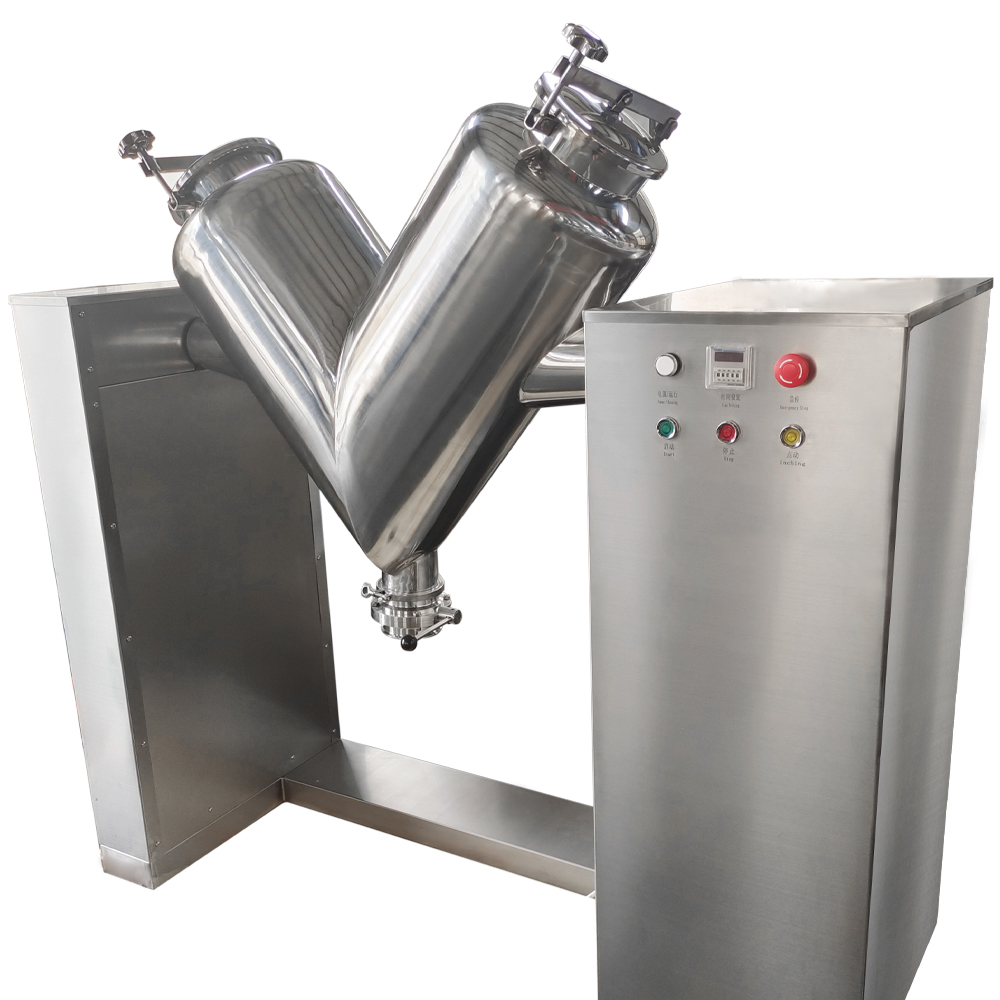

V Type Mixing Machine | LPMIE

Item No.: 00392
The V-type mixer is used for the mixing of powder particles of dry materials in pharmaceutical, food, chemical and other industries.
Description
Description

Product Overview

This series mixer have two types of machine, one is high-efficiency mixer and the other is normal mixer. The high-efficiency mixer mainly for good fineness powder or the material have one kind of main material with less content. Normal type mixer suitable for common material and big production capacity factory use.
Compulsory mixer is option according to customer’s requirement, suitable for fine powder, massive, and material with certain moisture.

Features & Benefits

  • Unique structural design: the mixing cylinder adopts a special structure to ensure efficient mixing of materials.
  • High-efficiency mixing performance: uniform mixing, no dead space, improve production efficiency.
  • High-quality stainless steel material: the barrel is made of stainless steel, corrosion-resistant, sturdy and durable.
  • Polished inside and outside: smooth surface to reduce material residue, easy to clean, in line with health standards.
  • Widely used: suitable for pharmaceutical, food, chemical and other industries of dry material powder and granule mixing.

Product Details

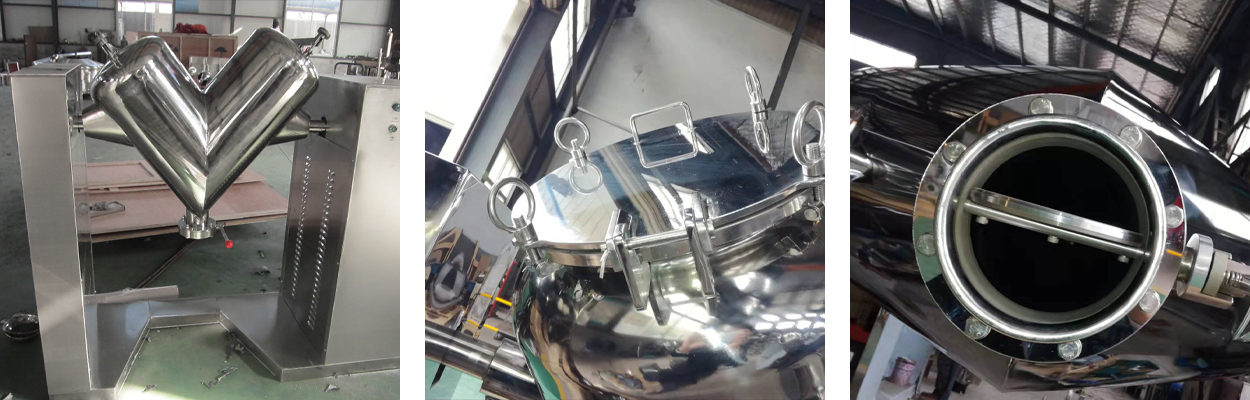

V-shape high-efficiency mixer
Product Parameters

 Model VH-50 VH-100 VH-200 VH-300 VH-500 VH-1000
Cylinder volume (L) 50 100 200 300 500 1000
Max. loading volume (L) 20 40 80 120 200 400
Max. loading weight (kg) 20 40 80 120 200 400
Mixing time (min) 0-99
Cylinder speed (r/min) 20 15 15 12 12 10
Motor power (kw) 0.75
1.1 1.1 1.1 2.2 4
Dimension (mm) 1250*450*1060 1620*500*1480 1800*600*1850 1900*650*1850 2500*800*2050 2850*1050*2050
Weight (kg) 160 220 280 320 550 950

Product Application

  • Pharmaceutical industry: Chinese medicine powder, western medicine powder, drug additives, etc.
  • Food industry: milk powder, flavorings, food additives, protein powder, cocoa powder and other dry powder materials.
  • Chemical industry: pigments, dyes, plastic powder, chemical auxiliaries, catalysts and other chemical raw materials to ensure stable product performance.
  • Metallurgical industry: powder metallurgy and 3D printing material preparation.
  • Agriculture and feed industry: feed additives, pesticide powder, seed coating agent, etc.
  • New material industry: electronic materials, ceramic powder, magnetic materials, composite materials and so on.
  • Daily chemical industry: laundry detergent, cosmetic raw materials, flavors and fragrances, etc. to ensure stable quality of finished products.
V-type mixer is widely used in a number of industries, especially suitable for the mixing of powder and granular material mixing process that requires high mixing uniformity and no damage to the material.

    Mixing of dry powder             Mixed dry powder granules             Mixed dry particles
